High Rank PCB Depaneling Equipment with 400mm Length for SMT Production Lines

High Rank V-Cut Blade Miving PCB Separator PCB Depaneling Equipment With 400mm Length

Introduction

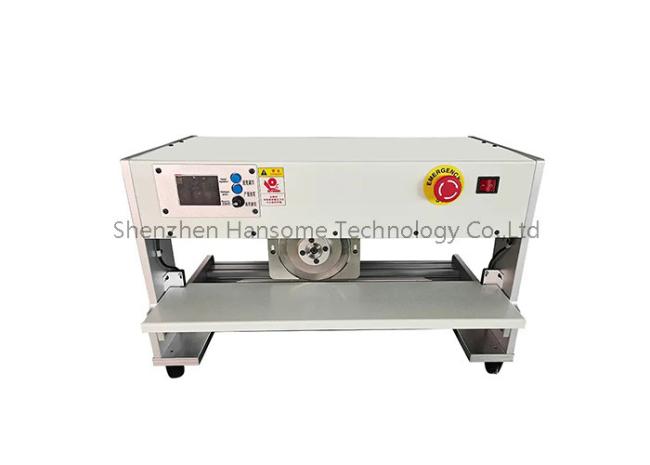

The HS-300 machine is a PCB separator featuring a blade movement system. It employs an upper circular blade and a lower linear blade design. Prior to cutting, the V-groove is placed on the linear blade, and the upper circular blade moves to complete the separation. This design minimizes force stress, eliminating the need for board movement, thereby protecting components on the board and preventing damage.

Main functions

Efficient separation:
The blade movement technology can quickly and accurately separate PCBs and reduce production cycles.

Adaptable:
Suitable for PCBs of different thicknesses and materials, and can handle circuit boards of various sizes.

Precise positioning:
Equipped with a positioning system to ensure accuracy and consistency during the separation process to avoid damage to the circuit board.

Safe operation:
Designed with operational safety in mind, it is usually equipped with a protective cover and emergency stop function.

Application areas

Electronic manufacturing:
Widely used in SMT (surface mount technology) production lines, especially when separating large PCBs.

Repair and maintenance:
Separate circuit boards that need to be replaced during repairs to improve work efficiency.

Advantages

Reduce labor costs:
The automated separation process reduces manual intervention and improves production efficiency.

Improve production efficiency:
The blade movement design makes the separation faster and suitable for mass production.

Reduce losses:
Precise separation technology reduces the risk of damage to circuit boards and reduces material losses.

Features

1. This machine is capable of cutting various types of boards featuring a V-slot.
2. The blade design is durable, allowing for at least two reshapings.
3. The height of the circular blade can be adjusted to accommodate different types of PCBs with varying component heights.
4. The blade operates through movement, exerting relatively low force stress. Controlled by a single motor, it offers easy and convenient operation.
5. Equipped with an induction function, the machine halts operation if the operator touches the area where the blade moves.
6. Ensuring safety, the machine features double protective devices, eliminating concerns about safety during production.
7. Built to last, the machine utilizes high-quality blades made from superior materials.
