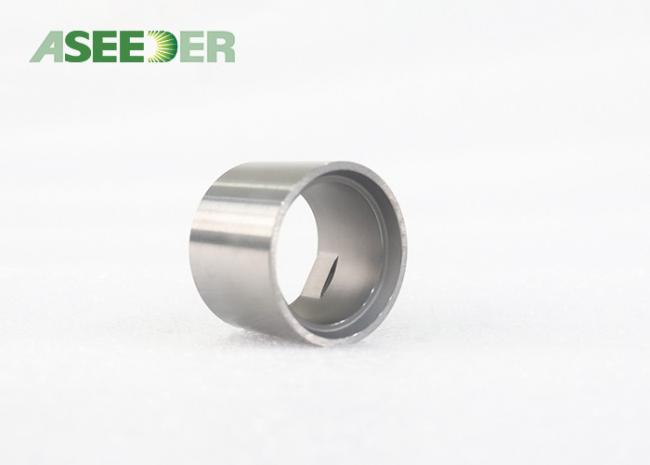

Abrasive Resistant Carbide Bushing Sleeve Bearing For Petrochemical Industry
Abrasive Resistant Carbide Bushing Sleeve Bearing For Petrochemical Industry
Carbide Bushing Sleeve Bearing Advantages:
(1). Abrasive resistant, corrosion free, good compression property, the most wear-resistant bushing, heat resistance, low maintenance ;
(2). The hardness is 10 times of gold, 5 times of tool steel, 4 times of titanium, oil resistance, separate the harmful medium;
Grades, Properties and Recommended Applications of Cemented Carbide
ASEEDER Carbide have R&D Dept can help customer to develop new grade as per special application.
| Aseeder Grade | Co (Wt %) |
Density (g/cm3) |
Hardness (HRA) | TRS (≥N/mm²) |
| ZY11-C | 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
| ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
| ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
| ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
| ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
| ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
| ZY09 | 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
| ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
Carbide Bushing Sleeve Bearing Features:
1. Use 100% tungsten carbide raw material
2. Stable chemical properties
3. Excellent performance and good wear / corrosion resistance
4. HIP sintering, good compactness
5. Strict products quality inspection
Carbide Bushing Sleeve Bearing Details
Specialty precision machining Manufactory!
| Type | Welcome all inquiries, requirements and customized,OEM,ODM orders | ||
| Processing | According to your drawing or picture or samples | ||
| Material | Stainaless steel,iron,Aluminum,copper,CRS, | ||
| Tolerance | As drawing request | ||
| Surface treatment | Zn-plating,Ni-plating,Cr-plating,Black oxide,Sand blasting,anodzing, Hot-dip galvanizing, color zinc plating, powder coating, chemical oxidation, painting, electroplating, rust prevention | ||
| Logo | Laser carving or Oil injection (according to your logo file) | ||
| Samples | Acceptable. | ||
| Surface Roughness | As drawings | ||
| Usage | machinery, home appliances, electronic products, electric appliances,stationery,
computers, power switches , Medical Equipment etc.Oil and Gas indurstry
|
||
| Payment terms | T/T, PAYPAL, L/C,NET 70, | ||
| Port | Guangzhou,Tianjing,Shenzhen,Shanghai,CHINA |
||
