Durable Safety Custom Wire Mesh Galvanized Rib Lath For Structural Work

Durable Safety And Strength Galvanized Rib Lath For Structural Work

General Production Information

Production introduction

Galvanized rib lath is manufactured to BSEN 10327-DX51D+275. It is a re-enforcing mesh with rigid ribs running along the length of the sheet. It is used as a key for plaster and render applications although it differs from the normal mesh because of the ribs it can accommodate a deeper two coat render application. It can also be used for partition walls and ceilings. Can generally fixed through the rib with a nail or through the sheet with a staple or tying wire.

Ribbed Lath is a versatile metal lath stiffened by the longitudinal ribs. It has V ribs and greater tensile strength offering excellent plaster base and reinforcement for all types of walls, ceilings and fireproofing of steel beam, and columns. Ribbed lath is ideal for providing a high degree key of mechanical bonding with plaster or render.

Specification

Advantages

1. Good mechanical properties, low side pressure
2. Direct observation of the casting process
3. Light weight, easy to transport and install
4. Optimize the process and increase the shear interface
5. Easy to wear and continuous lashing
6. Adapt to segmental pouring concrete, construction civilization
7. Easy to nest and cut

Function

1. It is easy to cut and form to ornamental plaster work.
2. It provides ample keying for scratch coat.
3. It is commonly used for plaster machine application.
4. It gives a uniform coat depth for large area.

Ribbed lath is produced in hot dipped galvanized steel, zinc coated carbon steel or stainless steel.

Application

1. High and low-rise residential light compartments, firewalls;
2. Construct a partition, a compartment;
3. the floor of the building, the partition wall;
4. Permanent interior and exterior walls and walls of permanent buildings;
5. the basement moisture-proof duplex wall.
6. Work seams with structural combination;
7. Tunnels, sewers, and wall works;
8. cutting foundation, dock, retaining wall;
9. flat and arched floor;
10. Nuclear power plant, storage tank and other arc-shaped structures;
11. Special projects such as landscaping sculptures;
12. Slope protection, earth embankment and other projects.

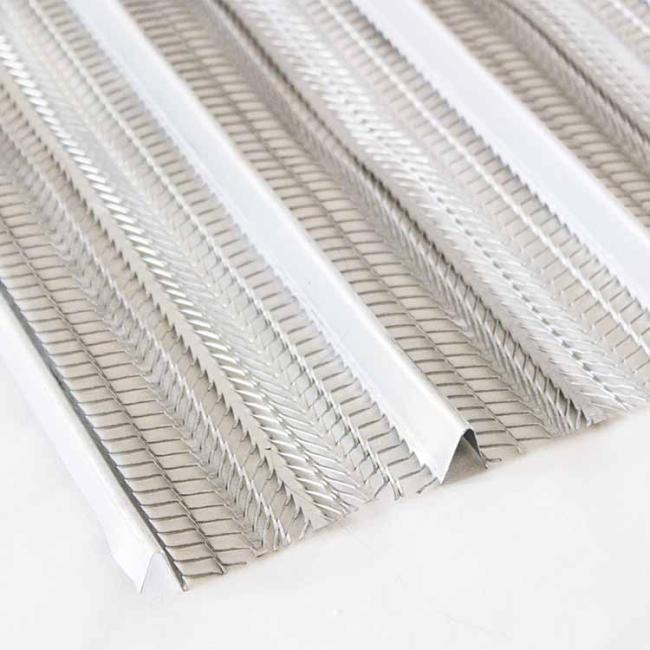

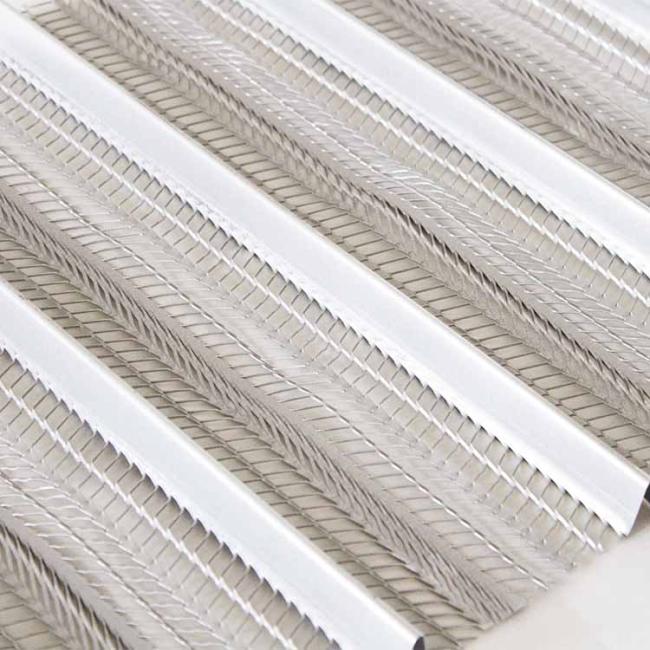

Product Display

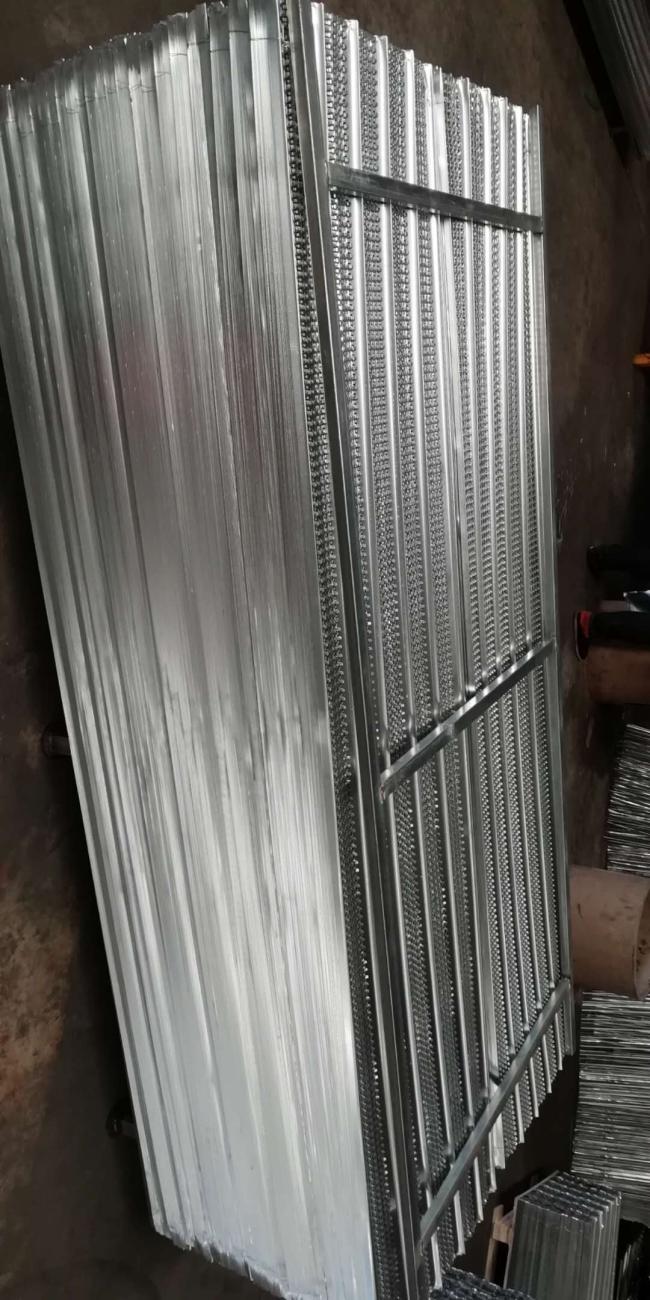

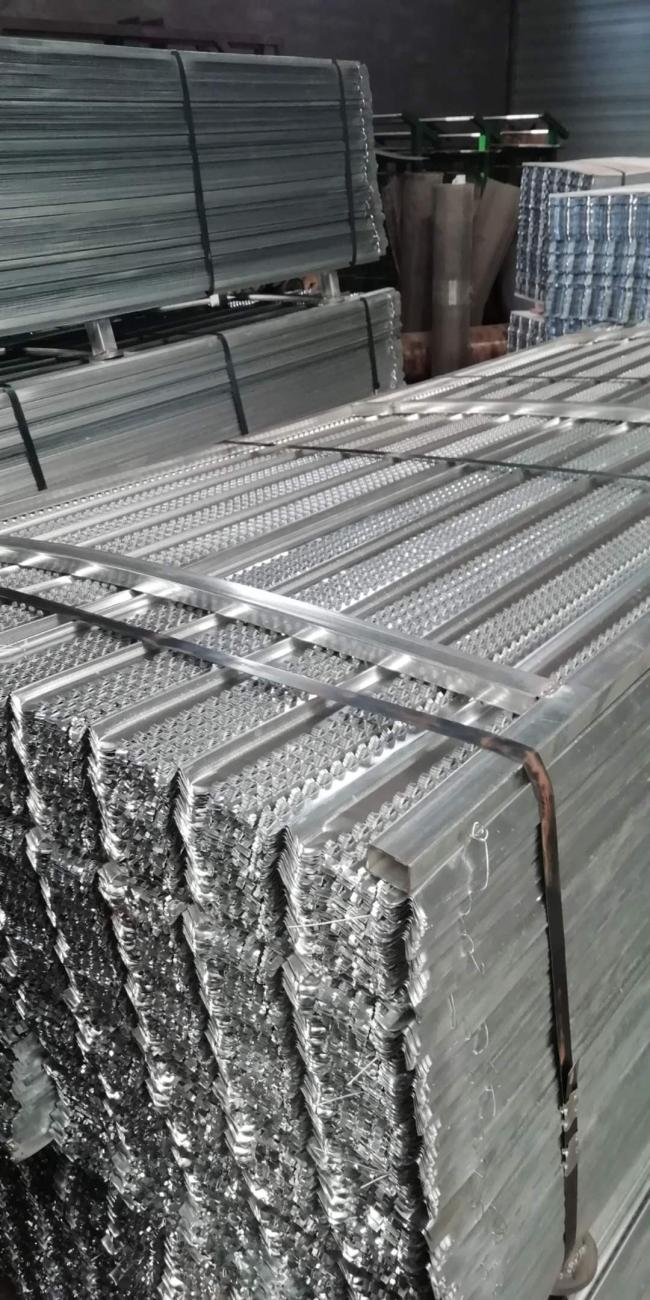

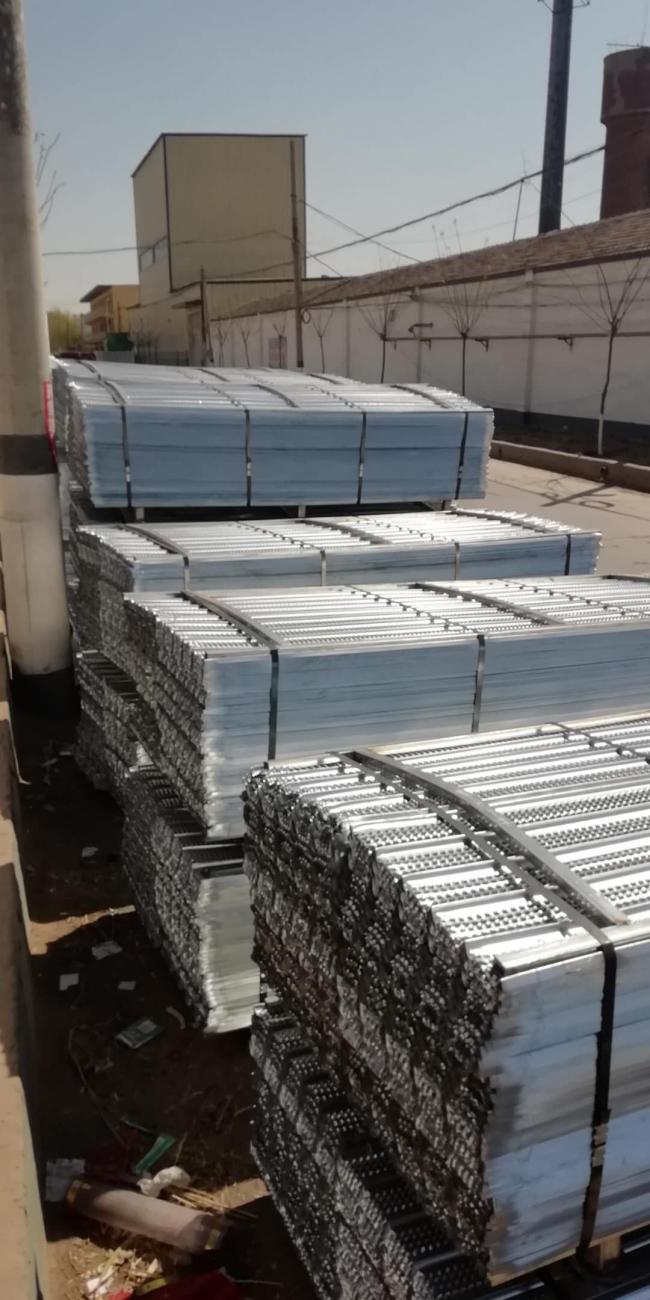

Packaging & Encasement
