Flatten Type Aluminum Mesh Expanded Metal Sheet For Catwalk Grating

Flatten Type Aluminum Mesh Expanded Metal Sheet For Catwalk Grating

Production introduction

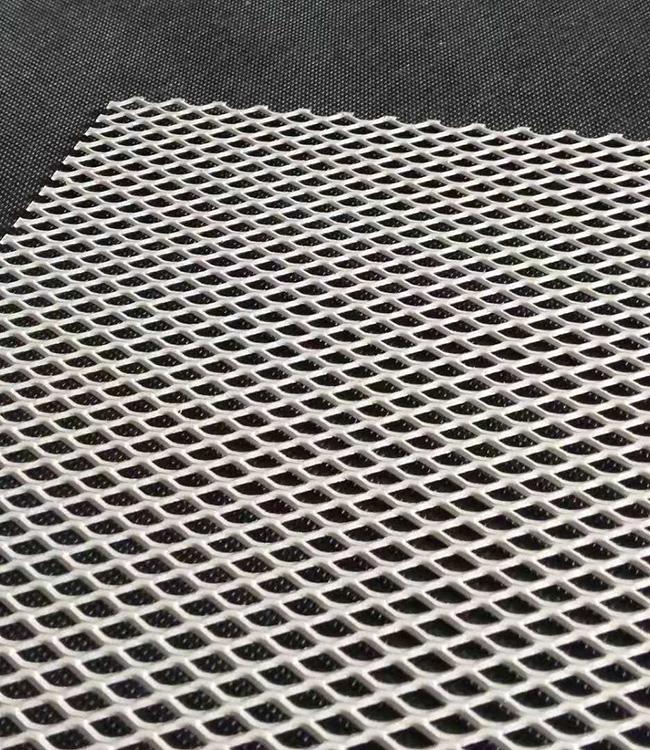

Expanded metal is an open mesh, and it has the flatten type. It is a finished product that is simultaneously die-cut and expanded as it moves through progressive dies on a press.

In the expanding process, the metal can be expanded up to ten times its original size, lose up to 80% of its original weight per square foot, and still retain form and rigidity.

Ares Metal can produce variety of expanded metal sheets. Our Expanded products are available both in standard and flattened.

Material:

1. Carbon Steel
2. Stainless steel plate
3. Galvanized plate
4. Titanium plate
5. Copper

Surface Treatment:

1. Painting
2. Galvanized
3. Powder Coating

Specification

Nomenclature

Diamend - The open area formed by strands and bonds. Normaaly the open area is diamond shaped.

Strand - The single metal strip that forms the perimeter of the diamond. The strand thickness is the thickness of the metal form which the expanded metal is produced. The strand width is the amount of material advance before forming the next diamond.

Bond - The point where adjacents strands interest. The bond width is always twice the width of the strand.

LWD - Long way of the diamond

SWD - Short way of the diamond

LWO - Long way of the opening

SWO - Short way of the opening

Our Advantage

1. We have a wide range of products and supply Thai standard American standard South Africa Xinjiapo and other standard products.
2. Customized according to customer's requirement for mesh size, opening size, specification, patterns
3. Adequate inventory, low order quantity
4. Deep processing service

Raised Expanded Metal Applications

The applications and uses for raised expanded metal products are virtually endless. Example include:

1. Ramps
2. Curtain Wall Panels
3. Building Facades Metal Mesh
4. Display Panel
