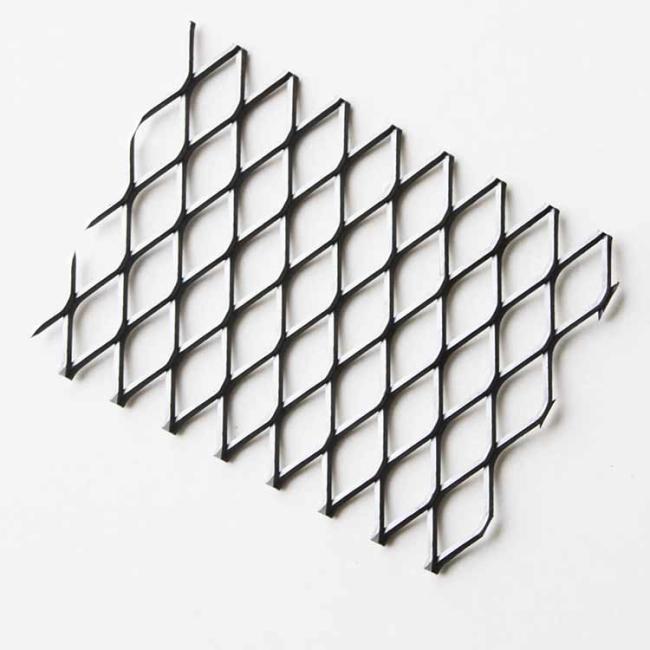

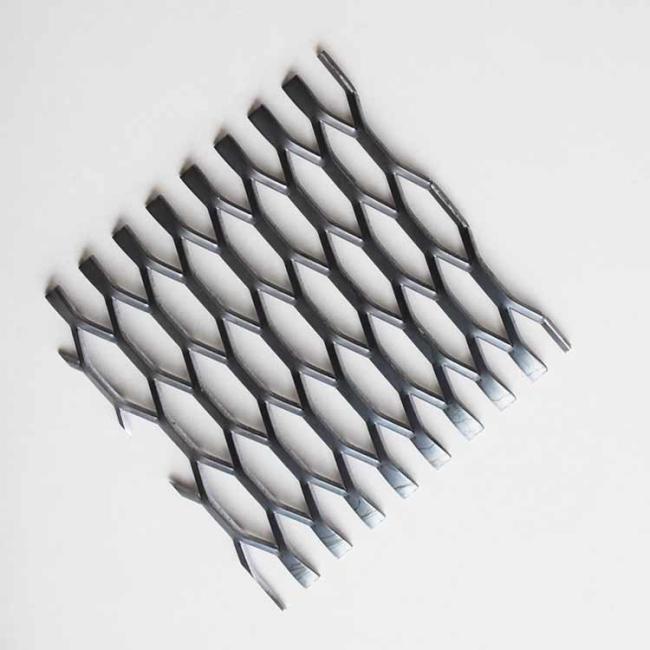

Durable Iron Steel Expanded Wire Mesh Ceiling / Expanded Metal Panels SGS Certificate
| Material |
Stainless steel,thin low carbon steel,brass plate, Aluminum plate,titanium plate,nickel plate,Al-Mg alloy plate. |
| Thickness | 0.3-10.0mm |
| Hole shape | Diamond,square hole,scale hole,gothic etc. |
| Mesh size | 1220*2440mm,1200*2400mm,1000*2000mm or customized |
| Product name | iron steel expanded wire mesh ceiling / expanded metal mesh sizes |
| Surface treatment |
1.PVC coated 2.Powder coated 3.Anodized 4.Paint 5.Fluorocarbon spraying 6.Polishing |
| Standerd | America--Japan--South Africa--Canada--Thailand |
| Benefits |
1.Continuity--the mesh is formed from a single piece of metal 2.Environment friendly--no wasteful of material 3.High strength--higher strength to weight ration then metal sheet 4.Adherence--anti slip surface 5.Very good noise and fluid filtration--excludes & retains simultaneously 6.Good rigidity--premium reinforcement properties 7.Good conductivity--highly efficient conductor 8.Screening--practical and effective light filtration 9.Good resistance to corrosion |
| Package |
1.On galvanized iron pallet and wooden case with waterproof cloth 2.On galvanized iron pallet with waterproof cloth 3.In wooden case with waterproof paper 4.In carton box 5.In roll with woven bag,the biggest width is 3000mm 6.In bulk or In bundle |
| Certification | ISO9001,ISO14001,BV,SGS certificate |
Products applications :
1. It used with concrete in buildings and construction, maintenance of equipments, making of arts
and crafts, covering screen for first class sound case.
2. It is fencing for super highway, studio, highway.
3. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and
walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships.
4. It also serve as reinforcing bar in construction, railway and bridges.
| STYLE |
GALVANIZED WEIGHT PER SQ. FOOT |

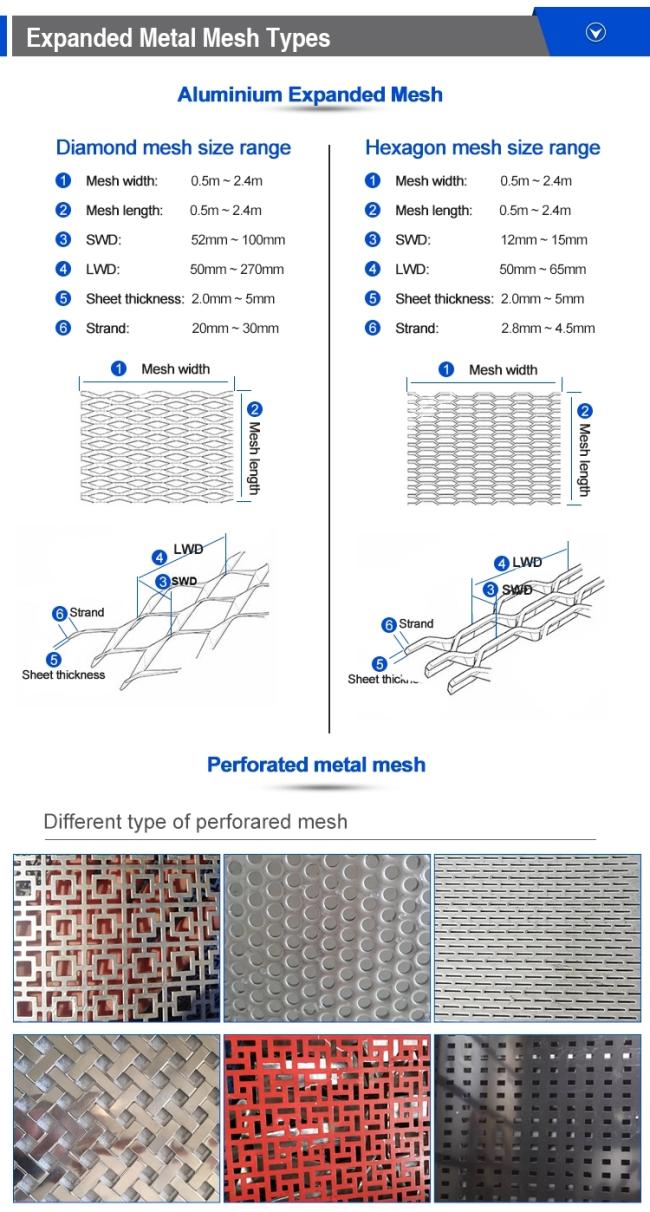

DIAMOND SIZE (INCHES) |
DIAMOND OPENING (INCHES) |
STRAND SIZE (INCHES) |
% OPEN AREA |
|||
| SWD | LWD | SWO | LWO | WIDTH | THICKNESS | |||
| Flattened - Carbon Steel | ||||||||
| 1/2" - 13F | 1.61 | 0.500 | 1.25 | 0.265 | 1.000 | 0.107 | 0.078 | 52 |
| 3/4"- 9F | 1.88 | 0.923 | 2.10 | 0.563 | 1.688 | 0.165 | 0.120 | 63 |
| 1-1/2"- 9F | 1.25 | 1.330 | 3.20 | 1.000 | 2.563 | 0.158 | 0.110 | 75 |
| Flattened Stainless Steel - (nominal weight only, no galvanize) #304 | ||||||||
| 1/2" -13R | 1.78 | 0.48 | 1.26 | 0.220 | 0.970 | 0.128 | 0.080 | 47 |
| 3/4"-9R | 1.95 | 0.923 | 2.10 | 0.562 | 1.697 | 0.165 | 0.119 | 61 |
| 1-1/2" -9R | 1.31 | 1.330 | 3.15 | 0.937 | 2.625 | 0.165 | 0.119 | 75 |
