Long Life Warranty Aluminum Expanded Metal Mesh Ceiling For Decoration

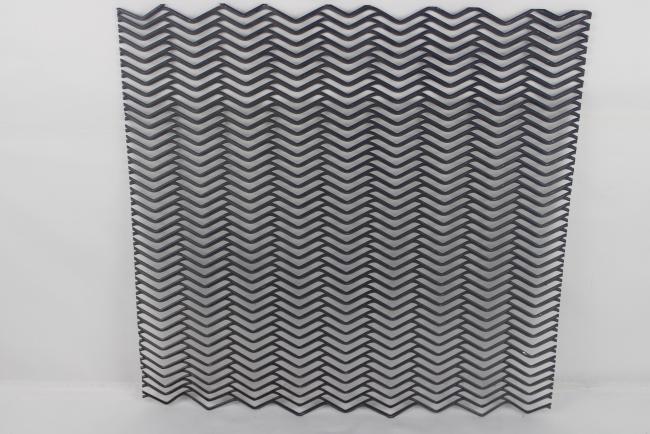

long life warranty aluminum expanded metal mesh ceiling
Expanded metal suspended ceilings give ceilings a stunning, high-tech look to modern interior spaces. Made from 35 to 55 percent recycled material, these expanded metal tiles are available in three distinct patterns with or without an acoustical backer. To meet your unique vision, specify in a custom dimension or distinctive color of metal to complement the metal. For a perfect match to the standard metal colors, use ceiling grid system in white or satin chrome.
Specification
|
Materials:Aluminium plate. low carbon steel plate.stainless steel plate.AL-MG alloy plate.Nickel plate.
|
|||
|
Hole shape:Diamond,square hole,scale hole, Hexagonal etc.
|
|||
|
Colors: white, red, yellow, blue, purple, orange, green, black or as requirements.
|
|||
|
Thickness: 0.5 mm – 3.0 mm.
|
|||
|
Length: 1 m – 2.5 m.
|
|||
|
Width: 0.5 m – 2 m.
|
|||
|
Open area: 61% – 84%.
|
|||
|
Surface treatment: electrostatic spraying ;oxidation coloring ,PVDF spraying,polishing
|
| Specification of Expanded Metal Mesh | ||||||
| Sheet Thickness | Opening in Width mm |
Opening in Length mm |
Stem | Roll Width mm |
Roll Length mm |
Weight kg/m2 |
| 0.5 | 2.5 | 4.5 | 0.5 | 2.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 2.5 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 2.5 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 2.5 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 2.5 | 2 | 1.77 |
| 1.2 | 10 | 25 | 1.1 | 2.5 | 4 | 2.21 |
| 1.5 | 23 | 60 | 2.6 | 2.5 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2.5 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2.5 | 4 | 3.69 |
| 6 | 50 | 100 | 6 | 2.5 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2.5 | 2.1 | 28.26 |
usage
Aluminum pull net ceiling is a small ceiling system tailored to the customer's philosophy and requirements by using aluminum pull net as the raw material. Its surface is elegant and elegant, attracting sound insulation, more efficient, more environmentally friendly, and meets the needs of the future market. It is the new favorite of interior decoration.
1. Architectural: stairs, ceilings, walls, floors, shades, decorative, sound absorption
2. Automotive: fuel filters, speakers, diffusers, muffler guards, protective radiator grills
3. Industrial equipment: conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection
4. Mining: screens
5. Security: screens, walls, doors, ceilings, guards
6. Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates
We have the capability to customize any size or opening style to meet your specific needs.
We have a mature R&D team to upgrade our technology.
We have 33 years of production management experience, and a complete manufacturing chain.
