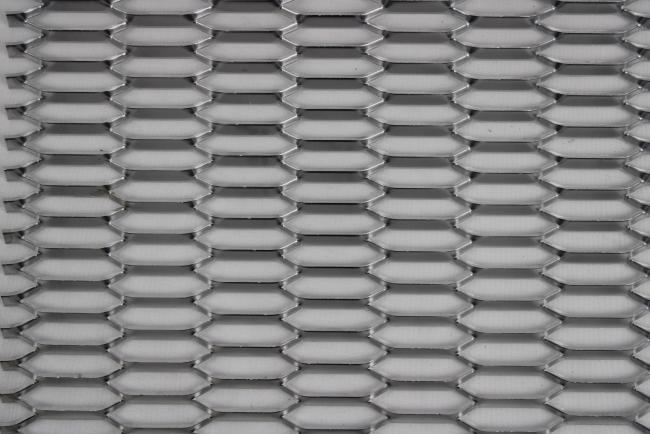

Decoration Expanded Aluminum Mesh , Diamond Shape Metal Mesh Spcilize In Customized
aluminum expanded metal mesh cailing for decoration spcilize in customized
Expanded metal suspended ceilings give ceilings a stunning, high-tech look to modern interior spaces. Made from 35 to 55 percent recycled material, these expanded metal tiles are available in three distinct patterns with or without an acoustical backer. To meet your unique vision, specify in a custom dimension or distinctive color of metal to complement the metal. For a perfect match to the standard metal colors, use ceiling grid system in white or satin chrome.
Specification
| Expanded metal plate | |
| Material | mild steel plate, aluminum, stainless steel plate, copper plate, nickel plate, titanium plate |
| Thickness | 0.5 mm – 3.0 mm |
| Hole Shape | diamond,square hole,scale hole, hexagonal etc. |
| Colors | white, red, yellow, blue, purple, orange, green, black or as requirements. |
| Surface treatment | electric galvanized, hot dipped galvanized,PVC coated,oxidation treatment,etc |
| Application | engineering curtain wall, construction industry, isolation network,decoration |
| Feature | expanded metal is a variety of metal plate punching stretching expansion.Raw material plate processing into a network, the area can be expanded several times, ten times, or even dozens of times. |
| Specification of Expanded Metal Mesh | ||||||
| Sheet Thickness | Opening in Width mm |
Opening in Length mm |
Stem | Roll Width mm |
Roll Length mm |
Weight kg/m2 |
| 0.5 | 2.5 | 4.5 | 0.5 | 2.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 2.5 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 2.5 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 2.5 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 2.5 | 2 | 1.77 |
| 1.2 | 10 | 25 | 1.1 | 2.5 | 4 | 2.21 |
| 1.5 | 23 | 60 | 2.6 | 2.5 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2.5 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2.5 | 4 | 3.69 |
| 6 | 50 | 100 | 6 | 2.5 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2.5 | 2.1 | 28.26 |
usage
Aluminum pull net ceiling is a small ceiling system tailored to the customer's philosophy and requirements by using aluminum pull net as the raw material. Its surface is elegant and elegant, attracting sound insulation, more efficient, more environmentally friendly, and meets the needs of the future market. It is the new favorite of interior decoration.
Main Features
1. Durable, Washable, Scrubbable, Mortar resistant;
2. There are high demands on modern buildings. Besides design, safety, flexibility and function, a long-term economic efficiency has to be embedded. Moreover, the people inside the building should feel comfortable;
3. Our large range of perforations improves both the acoustic and the visual appearance according to your demands;
4. Excellent fire weather resistance performance;
5. Custom made metal walls available to coordinate with ceilings and other interior / exterior finishings;
6. Nice pigment wet ability, no static, non - flammable;
7. Overlong weather resistance, anti - acid, alkali;
8. Resistance, anti - corrosion, 3 to 5 times chemical resistance to common resins;
9. Good self - cleaning, high gloss, abundant colors;
