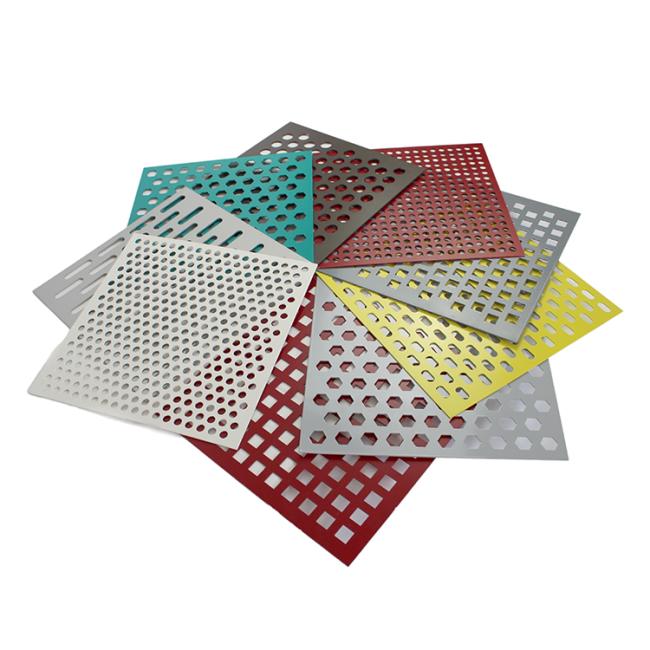

Customized Stainless Steel Perforated Sheet Mesh For Partition Screens
Perforated mesh can be used for partition screens customized
We can perform these types of perforation: round, square, oval (slot), special
and decorative.
The most used perforation method is punching. All standard perforations of diameters between 0.5 mm and 90 mm are made this way.
Special perforations that are smaller than 0.5 mm in diameter are made by chemical processes. Round apertures of diameters that are smaller than the thickness of material are drilled.
At present, we are able to make apertures and bridges between them that are smaller than the thickness of the material. This is possible because of new modern materials from which tools are made and thermic and chemical treatment of the surface of individual punches.
Specification
| perforated metal screen sheet Material |
Carbon Steel Galvanized Steel Stainless Steel Aluminum Aluminum coated Steel |
| Thickness or Gauge | Thickness of the metal sheets do not change during the perforation. Normally thickness is expressed in gauge, please see the picture. However, to avoid possible misunderstanding, we would suggest to express them in inches or millimeters. |
| Width and Length |
The most common width and length are as follows: 1000mmX2000mm 1220mmX2400mm 1250mmX2500mm 1250mmX6000mm 1500mmX3000mm 1500mmX6000mm |
| However, we also manufacture other sheet sizes according to clients' requests. |
| Opening (mm) | Center type(mm) | Thickness of sheet(mm) min-max |
Size (mm) | Stainless Steel |
Iron | Aluminium |
| 2×10 | ≥3 | 0.4-2 | 1220×2440 | √ | √ | √ |
| 2×15 | ≥3 | 0.4-2 | 1220×2440 | √ | √ | √ |
| 2×20 | ≥3.5 | 0.4-2 | 1220×2440 | √ | √ | √ |
| 1.5×15 | ≥3.5 | 0.4-2 | 1220×2440 | √ | √ | √ |
| 3×10 | ≥4 | 0.4-2.5 | 1220×2440 | √ | √ | √ |
| 2.5×10 | ≥3.5 | 0.4-2.5 | 1220×2440 | √ | √ | √ |
| 3.5×10 | ≥4.5 | 0.4-3 | 1220×2440 | √ | √ | √ |
| 4×5-25 | ≥5 | 0.4-3.5 | 1220×2440 | √ | √ | √ |
| 5×5-25 | ≥6.5 | 0.4--4 | 1220×2440 | √ | √ | √ |
| 10×10 | ≥12 | 0.5--4 | 1220×2440 | √ | √ | √ |
| 12×15 | ≥14 | 0.5-4 | 1220×2440 | √ | √ | √ |
| 15×16 | ≥18 | 0..6--4 | 1220×2440 | √ | √ | √ |
| 20×20 | ≥23 | 0.8---4.5 | 1220×2440 | √ | √ | √ |
| 22×23 | 2≥5 | 0.8-4.5 | 1220×2440 | √ | √ | √ |
| Above specifications for reference only,specifications can be customized according to user needs. | ||||||
1). Noise control barrier wall construction objects, generator room, factories,
2). Can also be used in the building ceiling, wall of sound-absorbing material;
3). Can be used for building stairs, balconies, tables and chairs in the beautifully decorated plate of Environmental protection;
