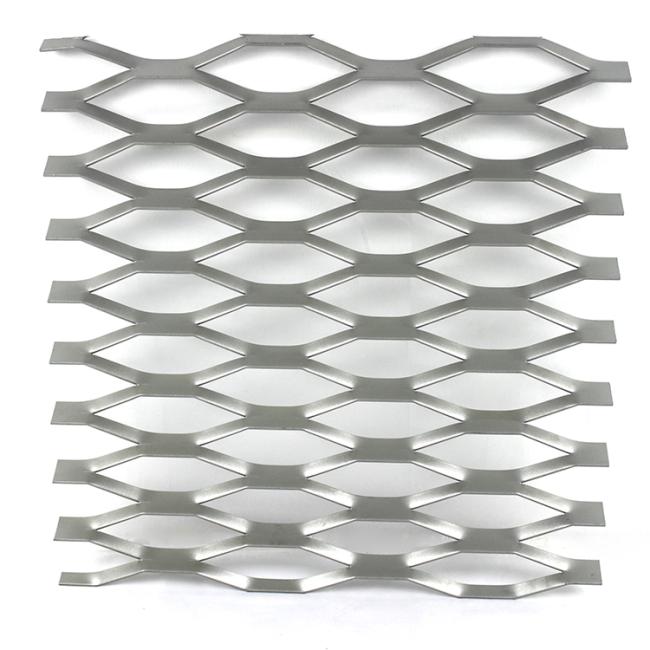

Rugged Expanded Aluminum Mesh Curtain Wall For Exterior Wall Decoration
Rugged Aluminum Mesh Curtain Wall For Exterior Wall Decoration
how to ensure the quality?
our factory meet ISO9001-2008 system certification, and we will supply offical material test report and product test report by SGS/BV
How to ensure the delivery in time?
firstly we have stock for common sizes.
second, we have mould making-term,help sepcial order to save time for making mould.
third, we own Advanced production equipment and experienced workers.
four, Long-term cooperation with courier companies and sea and air freight forwarders
Specification
| Thickness(mm) | SWD(mm) | LWD(mm) | Strand(mm) | Width(m) | Length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 30 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| Meterial |
Stainless steel,thin low carbon steel,brass plate, Aluminum plate and so on |
| Thickness | 0.3-10.0mm |
| Hole shape | Diamond,square hole,scale hole,gothic etc. |
| Mesh size | 1220*2440mm,1200*2400mm,1000*2000mm or customized |
| Surface treatment | Galvanized, Baking coated,Powder coating ,Anodized etc |
Application
used in filter elements, medicine, paper-making, filtering, breeding, wire mesh for battery, wire mesh for satelite aerial, machina protecting , handcraft making and window screen substitute.
