Oilfield WWB Type Manual Rig Tongs With Anti Corrosion Painting
Q 2 3 / 8 " - 10 3 / 4 " WWB Type Well Servicing Manual Rig Rotary Tongs
Description of Manual Tongs:
Manual Tongs (Manual Rig Rotary Tongs) are necessary oilfield tools applied to make up and break out pipes. Manual Tongs we offered are interchangeable with other major manufacturers’ tongs (Mud King Products, Woolley), and equivalent to Varco BJ,NOV,BVM and BV tongs.Our API 7K drill pipe with size Q 2 3/8-10 3/4 WBB Type Manual Tong is necessary tools applied to make up and break out pipes. Changing lug jaws and latch steps can adjust different handling sizes of the tongs. They are designed and manufactured according to API Spec 7K.
Manual Tong Model WBB (Q 2 3/8" - 10 3/4")
| No. of Latch Lug Jaw | Size Rang |
Rated Torque kN·m |
|
| in | mm | ||
| 1 | 2 3/8~3 3/4 | 60.3~95.25 | 48 |
| 2 | 3 1/2~4 5/8 | 88.9~117.48 | |
| 3 | 4 1/2~5 3/4 | 114.3~146.05 | |
| 4 | 5 1/4~7 1/4 | 133.35~184.15 | |
| 5 | 6 7/8~8 5/8 | 174.63~219.08 | |
| 6 | 9~10 3/4 | 228.6~273.05 |
35
|
Type AAX Manual Tongs
| No. of Latch Lug Jaw | Size Range | Rated Torque(KN.M) | |
| 1# | 2-7/8" ~ 3-3/4" | 73 ~ 95.25mm | 75 |
| 2# | 3-1/2" ~ 4-1/2" | 88.9 ~ 114.3mm | |
| 3# | 4" ~ 5-1/4" | 101.6 ~ 133.35mm | |
| 4# | 5" ~ 7-1/4" | 127 ~ 184.15mm | |
| 5# | 6-7/8" ~ 8-5/8" | 174.6 ~ 219.1mm | |
| 6# | 9" ~ 10-3/4" | 228.6 ~ 273.05mm | 40 |
| 7# | 10-3/4" ~ 11-3/4" | 273.05 ~ 298.45mm | |
| 8# | 13-3/8" | 339.7 | |
| Type C Manual Tongs | |||||
| No. of Latch Lug Jaws | Short Jaw | Hinge Jaw | Handling O.D | Rated Torque | |
| (mm) | (in) | KN•m | |||
| 1# | 2 3/8-7 | - | 60-93 | 2 3/8-3.668 | 48 |
| 2# | 73-108 | 2 7/8-4 1/4 | |||
| 3# | 89-133 | 3 1/2-5 1/4 | |||
| 4# | 133-178 | 5 1/4-7 | |||
| 5# | 7 3/8-10 3/4 | 7-8 5/8 | 178-219 | 7-8 5/8 | |
| 6# | 9 5/8-10 3/4 | 244-273 | 9 5/8-10 3/4 | ||

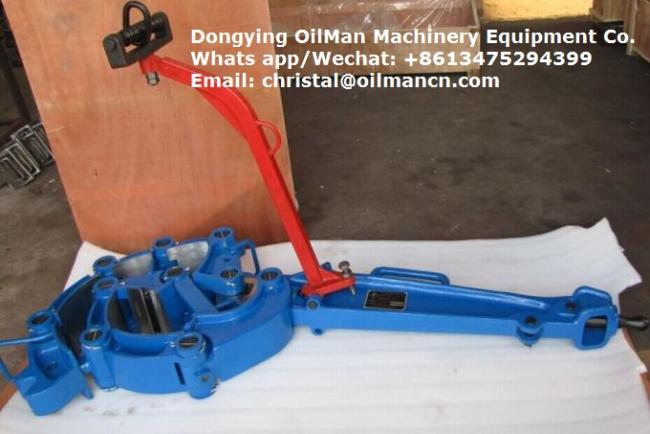

Products Show:
Q 2 3 / 8 " - 10 3 / 4 " WWB Type Well Servicing Manual Rig Rotary Tongs
Package & Shipping:
Export wooden case for the shipment of Q 2 3 / 8 " - 10 3 / 4 " WWB Type Well Servicing Manual Rig Rotary Tongs
