API 7K LF Type Q 2-3/8 -7 Inch/22 KN.M Manual Tong For Drilling Handling Tools
API 7K LF Type Q 2-3/8 -7 Inch/22 KN.M Manual Tong For Drilling Handling Tools
Description of Manual Tongs:
This API 7K LF type Q 2-3/8 -7/22 kN.m Manual Tong is used to fasten or remove the screws of drill tool and casing in well drilling and repairing. The handling size of this type tong can be adjusted by changing latch lug jaws. All of the goods were manufactured according to API 7K standard . We can supply the API and quality certificate with the goods.
Manual Tong Model LF (Q 2-3/8-7/22kN•m)
| Jaw No. | Step of each jaw | Size Range (inch) | Torque(kN·m) |
| 1 | 1 | 2-3/8" to 2-7/8" | 22 |
| 2 | 2-7/8" to 3-1/2" | ||
| 2 | 1 | 3-1/2" to 4-1/4" | |
| 2 | 4-1/4" to 5" | ||
| 3 | 1 | 4-3/4" to 5-1/2" | |
| 2 | 5-1/2" to 6-1/4" | ||
| 4 | 1 | 5-3/4" to 6-3/8" | |
| 2 | 6-3/8" to 7" |
| Type C Manual Tongs | |||||
| No. of Latch Lug Jaws | Short Jaw | Hinge Jaw | Handling O.D | Rated Torque | |
| (mm) | (in) | KN•m | |||
| 1# | 2 3/8-7 | - | 60-93 | 2 3/8-3.668 | 48 |
| 2# | 73-108 | 2 7/8-4 1/4 | |||
| 3# | 89-133 | 3 1/2-5 1/4 | |||
| 4# | 133-178 | 5 1/4-7 | |||
| 5# | 7 3/8-10 3/4 | 7-8 5/8 | 178-219 | 7-8 5/8 | |
| 6# | 9 5/8-10 3/4 | 244-273 | 9 5/8-10 3/4 | ||

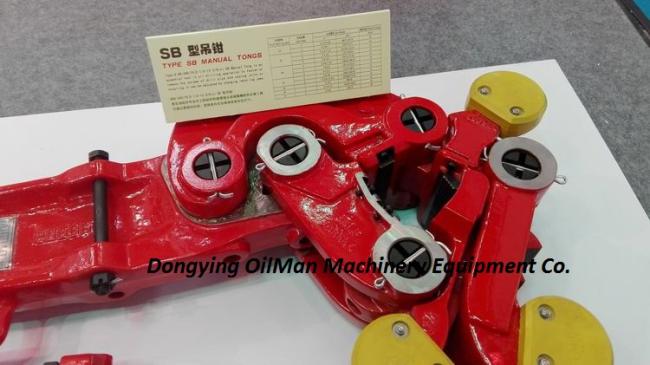

We also can supply all petroleum handling tools including : B, SB, DB, SDD, LF, TC, Workover, WWC, WWB, AAX type manual tong, Q13 3/8-8 casing, Extended casing tong, manual tong, Elevator Type DD, Elevator Type DDZ, Elevators Type CDZ, Elevator Type TA. Elevators Type CD, Elevator Type SX, Elevators Type SLX. Y Series Slip Type Elevators elevator, slip, Spider, Bushing, manual tong, Elevator links products.
Products Show:

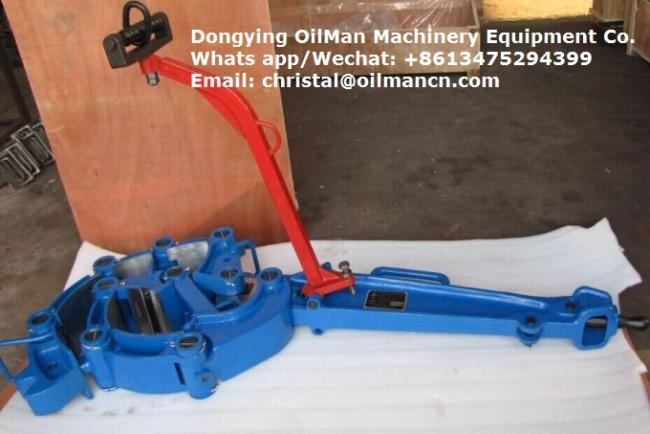

API 7K LF Type Q 2-3/8 -7 Inch/22 KN.M Manual Tong For Drilling Handling Tools
Package & Shipping:

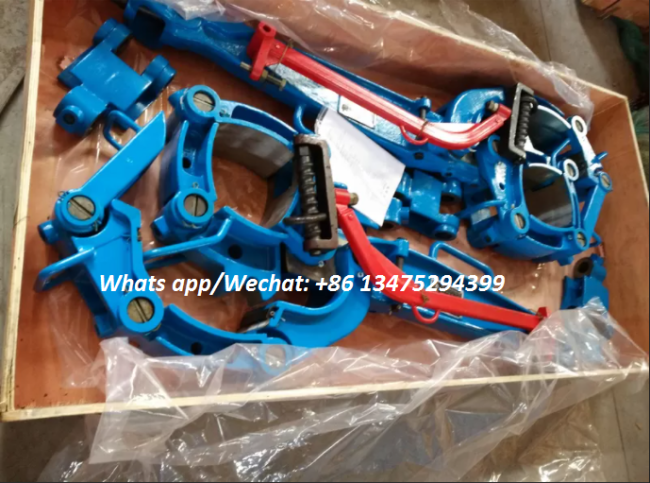

Export wooden case for the shipment of API 7K LF Type Q 2-3/8 -7 Inch/22 KN.M Manual Tong For Drilling Handling Tools
Any enquiry please contact us by email: christal@oilmancn.com.
Visit our website: www.oilmanchina.com for more products information.
WhatsApp/WeChat:+86 13475294399
