Forged Steel T-R 3 Jaw Solid Power Chucks High Precision Guaranteed
Price:
Negotiation
MOQ:
1 set
Delivery Time:
3 work days available
Brand:
NTH
Product Description
Product Details
Brand:NTH
The old TF series chucks had been changed to be new T-R model.
It‵s wedge-hook type 3-jaw big size closed center power chuck.
Matching surfaces of all parts are hardened, ground and lubricated directly.
Construction of high rigidity and high clamping accuracy.
High resistant to the fluid or dust.
Production Catalogue Download:T-R SERIES.pdf
(Size unit: mm)
| Spec/Model | Plunger stroke mm |
Jaw stroke Dia. mm |
Max RPM | Max.pull force kgf(KN) |
Max gripping force KN |
| T-212R | 30 | 16 | 3000 | 5302(52) | 14276(140) |
| T-215R | 35 | 16 | 3000 | 8260(81) | 25290(248) |
| T-218R | 35 | 16 | 2700 | 8260(81) | 25290(248) |
| T-221R | 35 | 16 | 1900 | 8650(85) | 27000(265) |
| T-224R | 35 | 16 | 1700 | 8650(85) | 27000(265) |
| T-232R | 35 | 16 | 1100 | 8650(85) | 27000(265) |
| T-240R | 35 | 16 | 800 | 8650(85) | 27000(265) |
| Spec/Model | Max.Oil pressure kgf/cm2(Mpa) |
Weight Kg |
Matching cylinder | Gripping range mm |
| T-212R | 35.7(3.5) | 68 | S-150(S-150R) | Ø32-Ø304 |
| T-215R | 32(3.1) | 104.1 | S-200(S-200R) | Ø68-Ø381 |
| T-218R | 32(3.1) | 138.5 | S-200(S-200R) | Ø100-Ø450 |
| T-221R | 33(3.2) | 204.8 | S-200(S-200R) | Ø80-Ø530 |
| T-224R | 33(3.2) | 260 | S-250R | Ø155-Ø610 |
| T-232R | 33(3.2) | 455.4 | S-250R | Ø155-Ø800 |
| T-240R | 33(3.2) | S-250R | Ø155-Ø1000 |

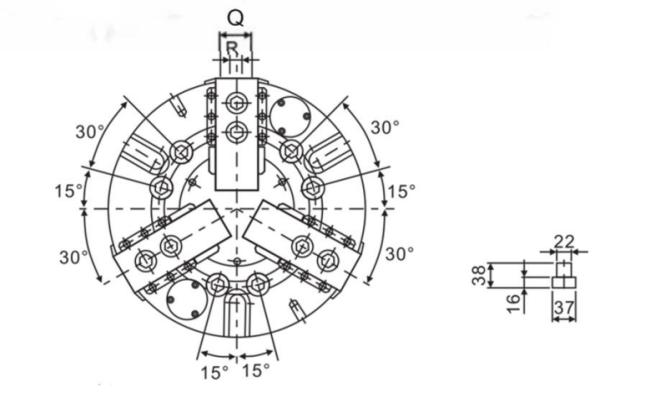

| Spec/ Model | Spindle Nose | A | B | C(h6) | D | E | E1 | F | G | H | K | L | M |
| T-212R | A8 | 304 | 118 | 220 | 139.719 | 18 | - | 6 | 190 | 171.45 | 6-M20×2.5P | 24 | 30 |
| T-215R | A11 | 381 | 118 | 300 | 196.869 | 22 | - | 6 | 260 | 235 | 6-M20×2.5P | 32 | 43 |
| T-218R | A11 | 450 | 118 | 300 | 186.869 | 22 | - | 6 | 260 | 235 | 6-M20×2.5P | 32 | 43 |
| T-221R | A15(A11) | 530 | 129 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | 6-M24×3P | 33 | 60 |
| T-224R | A15(A11) | 610 | 129 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | 6-M24×3P | 33 | 60 |
| T-232R | A15(A11) | 800 | 129 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | 6-M24×3P | 33 | 60 |
| T-240R | A15(A11) | 1000 | 129 | 380 | 285.775 | 27 | 41 | 6 | 330.2 | 330.2 | 6-M24×3P | 33 | 60 |
| Spec/ Model | Nmax | Nmin | Omax | Omin | Pmax | Pmin | Q | R | S | T | U | V | W | X | Y |
| T-212R | 64 | 56 | 45.75 | 12.75 | 145 | 115 | 50 | 18 | 36 | - | M20×2.5P | 50 | 54.5 | 129 | - |
| T-215R | 69.05 | 60.97 | 58.05 | 40.05 | 104 | 69 | 62 | 25.5 | 55 | 7 | M30×3.5P | 60 | 68 | 165 | - |
| T-218R | 99.46 | 91.38 | 58.05 | 40.05 | 92 | 57 | 62 | 25.5 | 55 | 7 | M30×3.5P | 60 | 68 | 165 | - |
| T-221R | 80.49 | 72.41 | 101.8 | 41.8 | 96.95 | 61.95 | 65 | 25 | 55 | 7 | M30×3.5P | 60 | 75.5 | 180 | 235 |
| T-224R | 119.49 | 111.41 | 101.8 | 41.8 | 96.95 | 61.95 | 65 | 25 | 55 | 7 | M30×3.5P | 60 | 75.5 | 180 | 235 |
| T-232R | 119.49 | 111.39 | 197.8 | 41.8 | 97 | 61.95 | 65 | 25 | 55 | 7 | M30×3.5P | 60 | 75.5 | 180 | 235 |
| T-240R | 119.49 | 111.39 | 299.8 | 41.8 | 97 | 102 | 65 | 25 | 55 | 7 | M30×3.5P | 60 | 75.5 | 180 | 235 |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
