Forged Steel TS-R 6 Jaw Closed Center Power Chuck For Gripping And Fixtures
Price:
Negotiation
MOQ:
1 set
Delivery Time:
3 work days available
Brand:
NTH
Product Description
Product Details
Brand:NTH
Multiply contact points clamping.
It can avoid the deformation issue when clamping the thin- wall pipe or ring-like workpieces.
High resistant to the chips and dust.
Production Catalogue Download:TS-R PDF.pdf
(Size unit: mm)
| Spec/ Model | Plunger Stroke (mm) |
Jaw Stroke (Dia) (mm) |
Max clamping Dia (mm) |
Min clamping Dia (mm) |
Max.D.B.Pull KN(kgf) |
| TS-212R A8 | 30 | 10.5 | 304 | 32 | 53(5448) |
| TS-215R A11 | 35 | 12.3 | 381 | 50 | 82(8429) |
| Spec/Model | Max clamping Force KN(kgf) |
Max RPM | Inertia kg*m2 |
Weight kg |
Matched Cylinder | Max.pressure Mpa(kgf/cm2) |
| TS-212R A8 | 142(14597) | 3000 | 0.95 | 67 | S-150 | 2.1(21) |
| TS-215R A11 | 248(25495) | 3000 | 1.95 | 116 | S-200 | 2.1(21) |

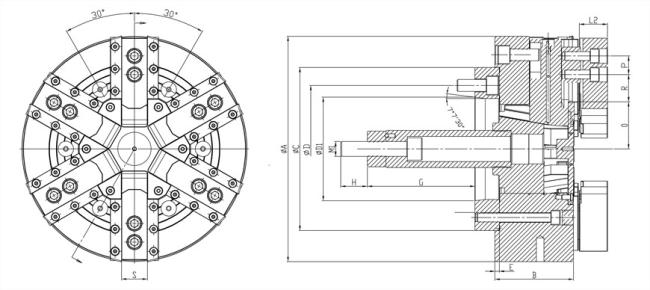

| Spec/ Model | A | B | C(H6) | D | D1 | E | G max | G min |
| TS-212R A8 | 304 | 106 | 220 | 185 | 139.719 | 6 | 145 | 115 |
| TS-215R A11 |
381
|
116 | 300 | 235 | 196.869 | 6 | 82 | 47 |
| Spec/ Model | H | L2 | M1 | N | P | O max | O min | R max | R min | S |
| TS-212R A8 | 36 | 38 | M20*2.5 | 95 | 25 | 74.3 | 9 | 46 | 9 | 35 |
| TS-215R A11 | 20.5 | 36 | M75*2.0 | 73 | 20 | 93 | 12 | 22.8 | 9.3 | 31 |
Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
