AP LARGE THROUGH-HOLE AIR CHUCK GRIPPING / FIXTURE
Product Details
Brand:NTH
Large through-hole 3-jaw power chuck with build in air cylinder.
Patented air supply system, it is easy to install and maintain. No abrasion issue of traditional sealed ring. Maintenance cost and time can be saved.
(Size unit: mm)
|
Model |
Thru-hole Dia. |
Jaw strok (Dia.) |
Chucking Dia. Max. (mm). |
Chucking Dia. Min. (mm) |
Max. pressure |
| AP-52A6 | 52 | 5.9 | 170 | 15 | 0.6(6.1) |
| AP-66A6 | 66 | 7.6 | 215 | 24 | 0.6(6.1) |
| AP-86A8 | 86 | 8.9 | 268 | 43 | 0.6(6.1) |
| AP-115A8 | 115 | 10.6 | 330 | 55 | 0.6(6.1) |
|
Model |
Max. clamping force kN (kgf) |
Max. speed min-1(r.p.m.) |
Inertia kg‧m2
|
Weight (kg) |
Weight (kg) Adapter Included |
Air Consumption |
| AP-52A6 | 40.4(4118) | 4200 | 0.2 | 26 | 27 | 3.1 |
| AP-66A6 | 51.0(5185) | 3500 | 0.4 | 38 | 39 | 5.1 |
| AP-86A8 | 76.0(7723) | 3200 | 0.7 | 58 | 60 | 8.7 |
| AP-115A8 | 80.0(8155) | 3000 | 1.7 | 92 | 95 | 12 |

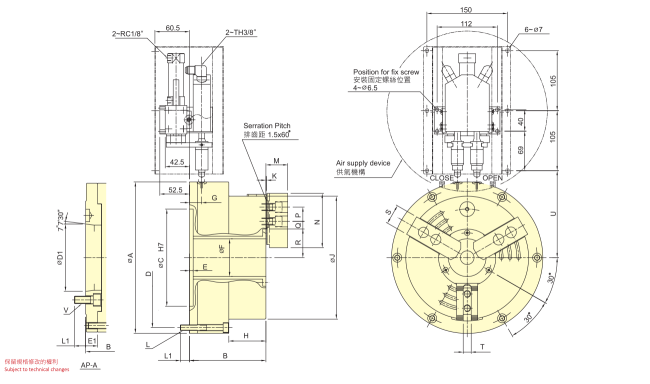

| Model | A | B | C | D | D1 | E | E1 | F | G | H | J | K | L | L1 | L1 |
| AP-52A6 | 235 | 121/140 | 170 | 215 | 106.38 | 6.5 | 19 | 52 | 21.5 | 58.5 | 170 | 2 | 6~M10 | 15 | 18 |
| AP-66A6 | 265 | 134/153 | 170 | 245 | 106.38 | 6.5 | 19 | 66 | 21.5 | 65 | 215 | 2 | 6~M10 | 16 | 18 |
| AP-86A8 | 315 | 142/169 | 220 | 295 | 139.72 | 6.5 | 27 | 86 | 21.5 | 67 | 268 | 2 | 6~M10 | 16 | 24 |
| AP-115A8 | 370 | 154/181 | 220 | 350 | 139.72 | 6.5 | 27 | 115 | 21.5 | 69 | 330 | 2 | 6~M10 | 16 | 24 |
| Model | M | N | P | Q max. | Q min. | R max. | R min. | S | T | U | V |
| AP-52A6 | 37 | 73 | 20 | 21.2 | 9.2 | 38 | 35.1 | 31 | 12 | 145.5 | 6~M12 |
| AP-66A6 | 38 | 95 | 25 | 23.7 | 8.7 | 50.2 | 46.4 | 35 | 14 | 159.5 | 6~M12 |
| AP-86A8 | 43 | 110 | 30 | 32.2 | 12.7 | 62.2 | 57.8 | 40 | 16 | 184.5 | 6~M16 |
| AP-115A8 | 51 | 130 | 30 | 44.7 | 14.7 | 77 | 71.7 | 50 | 21 | 212 | 6~M16 |
Remarks:
The dimensions and the specifications of 3Q-A are in the red data.
Subject to technology changes without prior information
Non-standard requirements can be made
