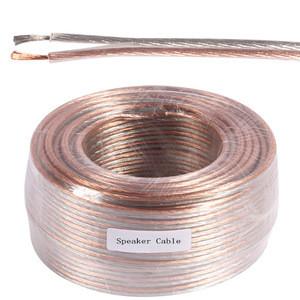

PVC Insulation Transparent Speaker Cable 14 AWG Twisted Pair Copper Wire 2x2.5mm2
Product Description:
(1). Application:
Using to connect power amplifier and loudspeaker equipment, broadcast system to transmit audio frequency signal, which is magnified by power amplifier.
(2). Characteristic:
It can be matched with sound equipment of over high frequency and over low frequency to reach a perfect sound effect, keeping stable for the leaving rhyme and strength of diapason and music. It’s fine and diversified in form.
(3). Product Standard:
Subject to corporate standard
(4). Instructions:
a) Multiple strands of copper line twisted as conductor
b) Transparent PVC insulation / Red and Black PVC Insulation / Black PVC Insulation)
c) Rated voltage: Uo/U is 300/300V
d) Keeping working temperature under 70°C for long-range operation
Speaker Cable for bus/home theater
Structure:
Conduct---pure copper/copper clad copper/copper clad aluminum
Insulation---transparent pvc/red golden/colorful/red&black
Size:
According to Standard/Sample/Price requirement.
3, the material of the inner conductor and outer sheath materials in accordance with customer requirements.
Speaker cable Standard Data
| Model | Material | Diameter(mm) | Amount | Area | OD(mm) | Length | Color | ||
| 10AWG | OFC/CCA | 0.127 | 250 | 2.827 | 5.0*10 | 100M/Roll | As your required | ||
| 12AWG | OFC/CCA | 0.127 | 200 | 2.262 | 4.5*9 | 100M/Roll | |||
| 14AWG | OFC/CCA | 0.127 | 150 | 1.697 | 4.0*8 | 100M/Roll | |||
| 16AWG | OFC/CCA | 0.127 | 100 | 1.131 | 3.5*7 | 100M/Roll | |||
| 18AWG | OFC/CCA | 0.127 | 50 | 0.565 | 3.0*6 | 100M/Roll | |||
| Remark | All of above Material are up to the International Standard OFC 99.998% Purity. | ||||||||
CLEAR SPEAKER CABLE----PARALLEL (BC/TC/CCA/CCS)
NOTE: CUSTOMERS' SPECIFICATIONS ARE WELCOMED
28AWG 2x7/0.12, OD: 1.6x3.2
26AWG 2x7/0.16, OD: 1.7x3.4
24AWG 2x11/0.16, OD: 1.8x3.6
22AWG 2x17/0.16, OD: 2.0x4.0
20AWG 2x26/0.16, OD: 2.2x4.4
| Specification | Product Description |
| 0.35 Square | 2CX20/0.15mm O.D:2.0X4.0 PVC |
| 0.5 Square | 2CX28/0.15mm O.D:2.2X.4.4 PVC |
| 0.75 Square | 2CX42/0.15mm O.D:2.4X4.8 PVC |
| 1.0 Square | 2CX57/0.15mm O.D:3.0X6.0 PVC |
| 1.5 Square | 2CX85/0.15mm O.D:3.6X7.2 PVC |
| 2.5 Square | 2CX7X20/0.15mm O.D:4.2X8.4 PVC |
| 4.0 Square | 2CX7X32/0.15mm O.D:5.0X10.0 PVC |
| 6.0 Square | 2CX7X48/0.15mm O.D:5.5X11.0 PVC |
FAQ:
(1).When can I get the price?
Quotation will send you in6 hours after receive your inquiry. Please call us or send our email directly if it's urgent for you.
(2).How can I get a sample to check your quality?
Free samples will send to you when we confirm the price.
(3).What about the lead time for mass production?
Generally 35days for the first order, and 25 days for the reorder.
(4).Does your company accept OEM production?
Yes, could printing your brand name.
(5).Is it convient to visit your factory?
2 hours from Shanghai airport or Hangzhou airport by car. We will pick up to you.
