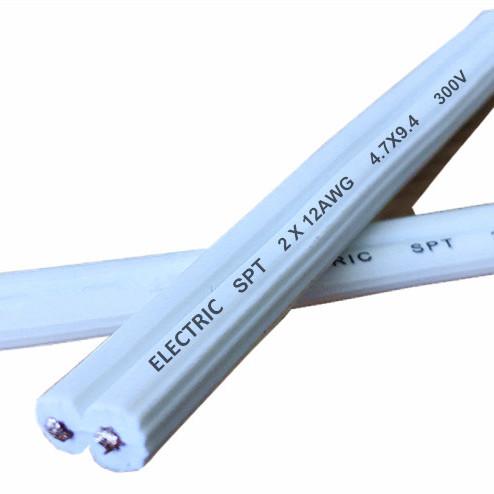

2*12AWG Flexible SPT Cable Pvc Copper Wire CCC Approved For Home Application
2*12AWG white color PVC copper cable Flexible SPT Cable 2X16AWG for home application
Products In Details
| Item: | SPT-1/ SPT-2/ SPT-3 |
| Describe: | Stranded copper conductor, PVC insuation and sheath flexible cable |
| Standard: | UL/ CUL ROHS |
| Voltage: | 300/500V |
| Application: | These cables are used for general purpose, as connecting line or inner wiring in power installation, specially suitable for household appliances, lighting, lamp cord and small electric tools. |
| Certification: | ISO9001, CE, ROHS, REACH, CCC |
| Packaging: | 100m per roll / 100m with a paper spool / 100m with a plastic spool / cuctom-made |
| Delivery Port: | Shanghai or Ningbo Port |
Standard: GB5023.5-1997,UL&ROHS.
Application: Medium or light type movable electric appliances instruments, household appliances
Structure: Pure copper or CCA, PVC insulation
Rated Voltage: 300/500V, 450/750V
Working temperature: 60degree, 75degree, 90degree, 105degree.
Color: White, Black, Yellow, Red, Blue, etc
Package: plastic films,Ploy Bag, Paper Box, Plastic Spool
| Reference Standard: UL 62 approved | Rated Voltage: 300V | Rated Temperature: 60°C –105°C | |||
| Conductor: Stranded Bare Copper/copper clad Aluminum (CCA) | Insulation : PVC | ||||
| AWG/No.of cores | NO./Normal Diameter of strand(mm) | Normal Thickness of Insulation(mm) | Over Diameter of Cable(mm) | ||
| SPT-1 | 20 x 2c | 21/0.18 | 0.78 | 2.55 x 5.1 | |
| 18 x 2c | 41/0.16 | 0.76 | 2.7 x 5.4 | ||
| 18 x 3c | 41/0.16 | 0.76 | 2.7 x 8.0 | ||
| SPT-2 | 18 x 2c | 41/0.16 | 1.14 | 3.4 x 6.8 | |
| 16 x 2c | 65/0.16 | 1.14 | 3.7 x 7.4 | ||
| 18 x 3c | 41/0.16 | 1.14 | 3.5 x 8.6 | ||
| 16 x 3c | 65/0.16 | 1.14 | 3.8 x 9.6 | ||
| SPT-3 | 18 x 2c | 41/0.16 | 1.52 | 4.4 x 8.7 | |
| 16 x 2c | 65/0.16 | 1.52 | 4.8 x 9.5 | ||
| 14 x 2c | 41/0.254 | 2.03 | 6.0 x 12.0 | ||
| 12 x 2c | 65/0.254 | 2.41 | 7.4 x14.0 | ||
| 10 x 2c | 105/0.254 | 2.79 | 9.1x18.2 | ||
| 18 x 3c | 41/0.16 | 1.52 | 4.4 x 10.7 | ||
| 16 x 3c | 65/0.16 | 1.52 | 4.8 x 11.8 | ||
| 14 x 3c | 41/0.254 | 2.03 | 6.0 x 14.5 | ||
| 12 x 3c | 65/0.254 | 2.41 | 7.4x16.5 | ||
| 10 x 3c | 105/0.254 | 2.79 | 9.1 x 18.8 | ||
