100W 150W 200W 250W UFO High Bay Light Warehouse Lighting Fixtures AW-HB620

Price Negotiable
Price: Negotiable
MOQ: 100
Delivery Time: 5-7 working days for sample,10-15 working days for mass production orders
Brand: A-wei lighting
Product Description



Led UFO High Bay Light 120lm / W LED Warehouse Lighting Fixtures 100w 150w 200w 250w  RoHS Approved





Description:



  • Using a one-piece structure, structural performance is stable.

  • light, high stability, High CRI

  • Meanwell with high power;

  • Lens with anti-glare design, greatly reducing the glare problem.

    12°/60°/90°beam angle (optional)





Applications:



  • Factory

  • Basketball stadium

  • Warehouse

  • Toll station

  • Gas station

  • Industrial and mining area

  • Exhibition building

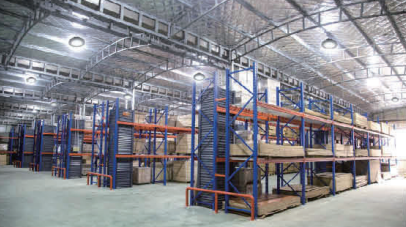

Warehouses and Distribution Centers:
Provides bright, uniform illumination for storage areas, loading docks, and packing/shipping zones
Helps improve visibility and safety for warehouse workers and forklift operators
Manufacturing Facilities:
Ideal for lighting up production floors, assembly lines, and other manufacturing spaces
Durable construction can withstand the demanding conditions of industrial environments
Retail Stores and Showrooms:
Delivers excellent illumination for large retail spaces, such as big-box stores and car dealerships
Enhances the visual appeal of merchandise and creates an inviting shopping experience
Gymnasiums and Sports Facilities:
Offers bright, glare-free lighting for indoor courts, training areas, and fitness centers
Helps create an optimal environment for athletic activities and events
Logistics Hubs and Transportation Facilities:
Suitable for illuminating airport terminals, train stations, and other transportation-related spaces
Provides reliable, energy-efficient lighting for high-traffic areas
Parking Garages and Outdoor Areas:
Can be used for general area lighting in open-air parking lots, loading zones, and outdoor storage yards
Durable design withstands environmental conditions and provides long-lasting performance



Specifications:



Type
Power 200W Material Die-casting Aluminium
Input Voltage AC100-305V LED Brightness Decay <5%/6000hrs
PF >0.95 Working Life >50000hrs
Driver Efficiency >90% Working Temperature -30-+45°C
Luminous Flux 23000LM Storage Temperature -40-+80°C
Proterction IP65 Protection Level Wet Location/IP65
Color Temperature 3000K-6500K Cable 3 core,18AWG
CRI Ra>80 G.W./N.W. 7.5KG/6.0KG
Size 400X400X79mm Packing size 410X410X90mm





Competitive Advantage:



  • Cost-effective mining lamp.

  • Design process simple, easy to install

  • 3 years - - 5 years warranty optional

  • OEM optional





Line Drawing:

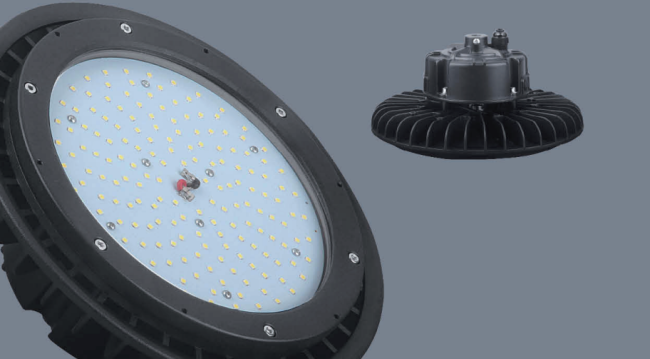

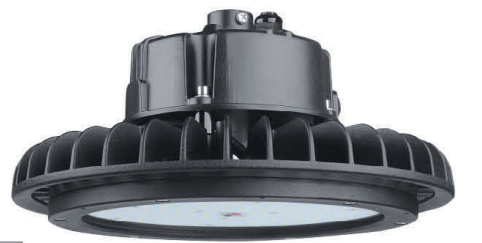

Product pictures:









Faq


Q1:Can I Have A Sample Order For Led Recessed Street Lighti/ Garden Light/ Flood Light/ High Bay/ Tri-Proof Light?
A: Yes, We Welcome Sample Order To Test And Check Quality. One Sample Or Mixed Samples Are Acceptable.
We Can Ship Samples From Our Warehouse In Changzhou City!

Q2:Is It Possible To Print My Logo On Led Recessed Street Lighti/ Garden Light/ Flood Light/ High Bay/ Tri-Proof Light?
A: Yes. Please Inform Us Formally Before Our Production And Confirm The Design Firstly Based On Our Sample.

Q3: How To Deal With The Faulty?
A: Firstly, Our Products Are Produced In Strict Quality Control System And The Defective Rate Will Be Less Than 0.02%.
Secondly, During The Guarantee Period, We Will Send New Lights With New Order For Small Quantity. For Defective Batch Products, We Will Repair Them And Resend Them To You Or We Can Discuss The Solution Including Re-Call According To Real Situation.

Q4. Can You Supply The Special Lighting Design?
A:Sure, Led Lighting Design Including The Dialux Simunlation,3d Products Renderings Etc.

Q5. Are You Manufacturer?
A: Yes, A Wei Lighting Has Over 10 Years' Experience In Led Lighting Industry.
