Die Casting Aluminum IP66 Led Flood Light 150W 300W 500W
Price:
Negotiable
MOQ:
100
Delivery Time:
5-7 working days for sample,10-15 working days for mass production orders
Brand:
A-wei lighting
Product Description
Die-Casting Aluminum IP66 Led Flood Light 150W 300W 500W
Description:

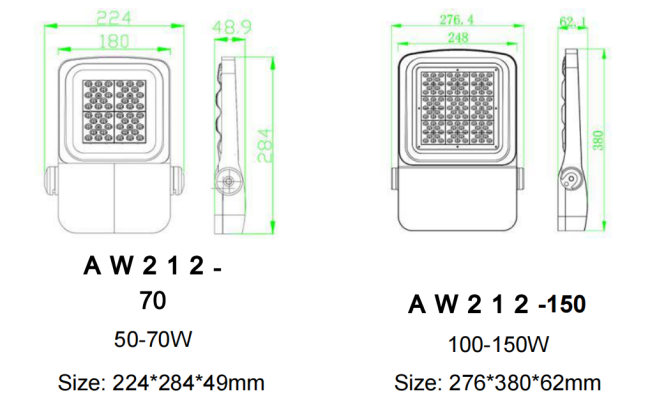

AW212-70
224*284*49mm
50W 70W
AW212-150
276*380*62mm
100W 150W

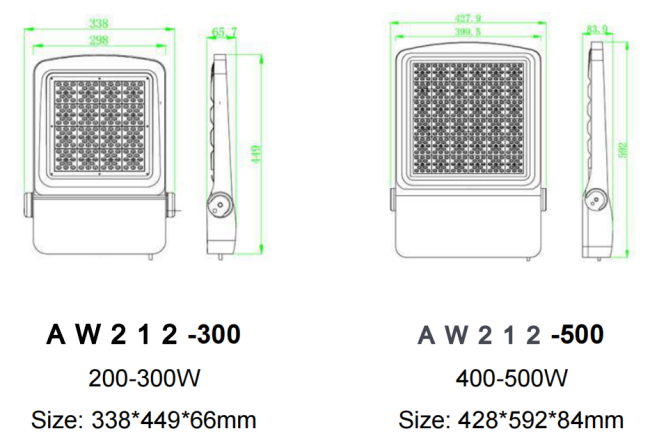

AW212-300
338*449*66mm
200W 250W 300W
AW212-500
428*592*84mm
400W 500W
Specifications:
Specifications:
| Model No | A W 2 1 2 -70 | A W 2 1 2 -150 | A W 2 1 2 -300 | A W 2 1 2 -500 |
| Size | 224*284*49mm | 276*380*62mm | 338*449*66mm | 428*592*84mm |
| Watts | 50W 70W | 100W 150W | 200W 300W | 400W 500W |
| Luminous | 115-150lm/W | 115-150lm/W | 115-150lm/W | 115-150lm/W |
| LED Qty | 96pcs SMD3030 24pcs SMD5050 |
216pcs SMD3030 54pcs SMD5050 |
384pcs SMD3030 96pcs SMD5050 |
864pcs SMD3030 216pcs SMD5050 |
| Material | Aluminum, LED Chip, Lens, Toughened Glass, Screw | |||
| Kelvin | 3000K, 4000K, 5000K, 6000K or Specified Color | |||
| LED option | SMD3030, SMD5050, CREE (Note: normal are SMD3030 chip) | |||
| CRI | 90Ra, 80Ra, 75Ra, 70Ra (Note: normal are 75Ra) | |||
| Lens Angle | 17, 30, 60, 90, 150*75, Type III, Type II | |||
| Driver option | Sosen, Inventronics, Meanwell or Specified brand (Note: normal are Sosen or Meanwell driver) | |||
| Input Voltage | 100-277Vac (Sosen), 110-240Vac (Meanwell ELG), 90-305Vac (Meanwell HLG); 50/60Hz; PF>0.95 | |||
| Lifetime | >85.000 hours | |||
| IP Level | IP66 | |||
| Lighting Way | AC Normal Lighting, AC Dimming Lighting, Solar Lighting, Photocell | |||
| Certificate | CE, RoHS, IP66, IK09 etc. | |||
| Package | A W 2 1 2 -70 50-70W | A W 2 1 2 -200 100-150W | A W 2 1 2 -300 200-300W | A W 2 1 2 -500 400-500W |
| Inner color box 37*35.5*25.5CM/4PCS/11.4kg |
Inner color box 46*21*34CM/2PCS/11.1kg |
Inner color box 54*21.5*37.5CM/2PCS/15.6kg |
Inner color box 67*13.5*48CM/1PC/15.2kg |
|
Competitive Advantage:
-
It is equipped with choice of unique optics and lumen level to suites various applications with different beam.
-
Universal mounting bracket offers easy angle adjustment of the flood light luminaire.
-
It is highly reliable, efficient and sturdy
-
It delivers high level of energy saving
Application:
It is widely used in warehouse,industrial factory, logistic workshop, retail store,theme restaruant, indoor stadium and etc.
