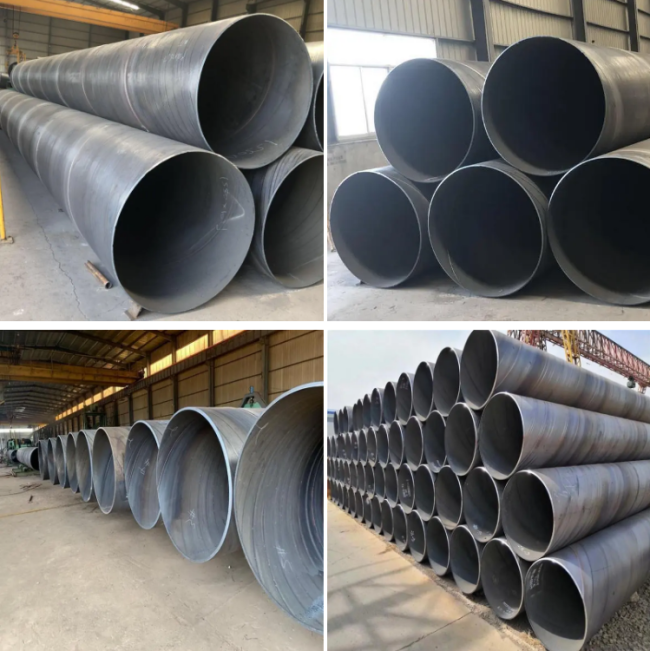

Non Oiled Large Diameter Spiral Steel Pipe SSAW Tube For Drilling Construction
Large diameter spiral steel pipe tube SSAW steel pipes for drilling construction
Spiral welded pipe.

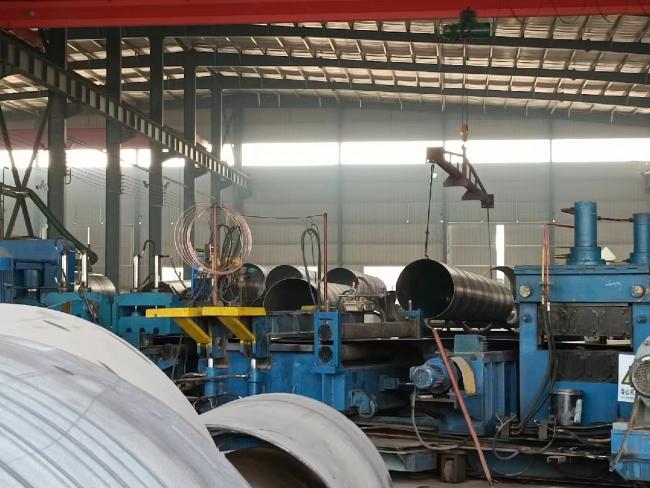

by welding with an automatic double-wire submerged arc welding process. The spiral steel pipe feeds the strip steel into the
welded pipe unit, and after being rolled by multiple rollers, the strip steel is gradually rolled up to form a round tube blank
with an open gap. 3mm, and make the two ends of the welding port flush.
Main Application:
1. Piling pipe;
2. Construction;
3. Water, Oil, Gas transportation;
| Feature | seamless | welded, seamed |
| Types | hot rolled seamless carbon steel pipe cold rolled seamless carbon steel pipe cold drawn seamless carbon steel pipe |
Electric-Resistance Welded Pipe Longitudinal Welded Pipe Spiral Welded Pipe |
| Standard |
*astm a53, a333, a335, a355, a312, a179, a106, a106b, a105, a192, a519, a210, a671, a672, sa213 *jis G3445/3454/3455/3441/3444 *din17175, din1629, din1615, din2458, en10210 |
a672, a795, a252, a53b, a53, a135, a500 |
| Technique | cold rolled, hot rolled, cold drawn | erw straight seam or spiral seam(efw available) |
| Outer Diameter |
50mm-630mm (1.96''-24.8'' hot rolled seamless steel pipe);
5mm-100mm (0.19''-3.93'' cold rolled/drawn seamless steel pipe) |
20mm-600mm (0.78''- 23.6'' straight seam weld steel pipe);
219mm-2020mm (8.62''-79.52'' spiral seam weld steel pipe). |
| Wall Thickness |
3mm-20mm (0.11''-0.78'' hot rolled seamless steel pipe);
0.5mm-3mm (0.01''-0.11'' cold rolled/drawn seamless steel pipe). |
1.0mm-12mm (0.03''-0.47'' straight seam weld steel pipe);
3mm-16mm (0.11''-0.62'' spiral seam weld steel pipe). |
| Length | 500mm-13000mm (19.6''-511.8'' or random length) | 300mm-12000mm(11.8''-472.4'' or random length) |
| Grade | 4140/4145/4130/4135/3087, ss400, c45, s235, s275jr, s355jr, s355j2h, p235gh tc2, p235 tr1, p235 tr2, sae1040/1020/1010/1070/1015/1018, stpg307, 40cr, 34crmo4, 20gr, 37mn, 16mnr, 20#, q345c, q195, q235c, 195c, s45c, st37/45/20/52/33 etc | sa 53 gr b, p91, q235b, q345b, q235, q195, st37, st44, s355, s135, s185, s235jr, s275jr, s355jr, etc |
| Shape | round, square, rectangular | |
| Pipe Ends | plain ends, beveled ends etc | |
| Surface Treatment | shot blasting/galvanized/painted as customer needs | |
