Quenching Heat Treatment Furnace Induction Hardening Machine 120kw
Price:
discussible
MOQ:
1set
Delivery Time:
15-25day
Brand:
junxi
Product Description
Hardening quenching furnace heat treatment furnace machine
Our company is producers of all ipe fitting machineries.Following is our machine detailsHot forming elbow machine, cold forming elbow machine, long bend machine, cold forming tee machine, pipe expanding machine, marking machine, median frequency heating machine, reducer machine, cap machine, shotblasting machine,cutting machine, bevelling machine, hydraulic press, CNC machine, drill machine, ring rolling machine.Our machines had been sold to many countries, such as Russia,,Egypt, Malaysia, India,Tukey,Indonesia and Jordan etc.
Heat treatment Machine Main Features

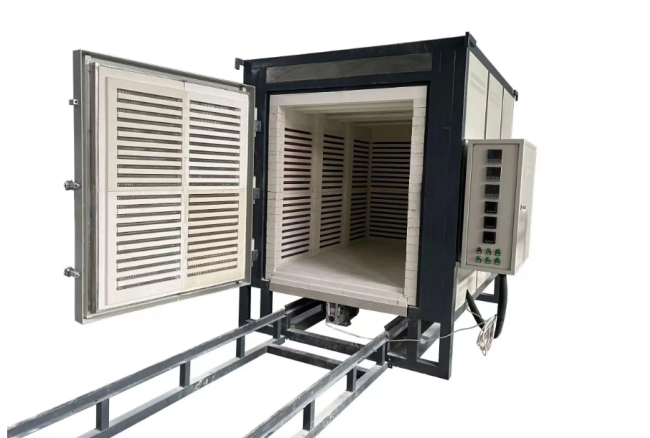

1) The trolley type furnace has a shell of welded steel plates and sectional steel. The structure is of thick material.
2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.
3) Heating components: high temperature resistance alloy wires and strips.
4) Low noise, energy-friendliness, and stable performance.
5) Advanced CAD design.
6) Years of experiences in heat treatment process.
2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.
3) Heating components: high temperature resistance alloy wires and strips.
4) Low noise, energy-friendliness, and stable performance.
5) Advanced CAD design.
6) Years of experiences in heat treatment process.
| . | Name | Heat treatment Machine |
| 1 | Equipment model | RT3-120-9 |
| 2 | Working size (mm) | 2000×1000×1000mm (L×W×H) |
| 3 | Equipment power (kw) | 120kw |
| 4 | Maximum temperature (°C) | 950°C |
| 5 | Common working temperature (°C) | ≦920°C |
| 6 | Temperature control zone | 1 part |
| 7 | Rated power supply | Three-phase 380v, 50HZ |
| 8 | Heating element connection | Y |
| 9 | Temperature control method | PID intelligent temperature control |
| 10 | Temperature control accuracy | ±1 ° C |
| 11 | Furnace temperature uniformity | ±5 ° C |
| 12 | Furnace wall temperature | Temperature rise ≤ 40 ° C |
| 13 | Empty furnace power loss | ≤20kw |
| 14 | Heating element material | 0Cr25A15 |
| 15 | Furnace plate material | 3Cr18Mn12Si2N |
| 16 | Carrying capacity (T) | ≤3T |
| 17 | Furnace door and trolley | Electric |
