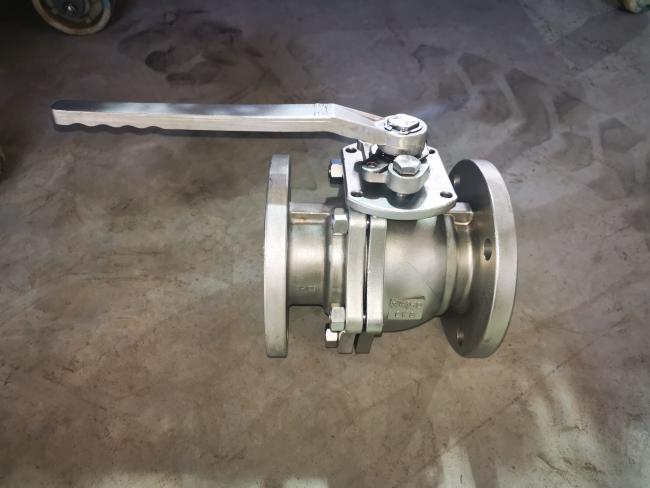

Anti Static Self Cavity Relief Api 607 Top Entry Ball Valve
Anti Static Self Cavity Relief Top Entry Ball Valve Industrial Control Valves
Design Data
Design standard: API 6D,DIN3357-1 , EN12516-1
Face to Face standard: API6D, ASME B16.10, DIN3202
Connecting Standard: ASME B 16.5, ASME B16.47, DIN 2543/4,ASME B 16.25
Test & Inspect Standard: API 6D ,API 598
Working Temperature: -196℃~610℃
Connection type: RF,RTJ,FF,BW.BSPT,NPT
Sour environment:NACE MR0175
Design Feature
1: Full bore or reduced bore
2: Integral body structure
3: Double Block & Bleed, Double isolation and bleed(DIB-1&DIB-2)
4: Fire safe design(API 607)
5: Blowout-proof system
6: Anti-static design
7: Self cavity relief
8: Fugitive emission testing(optional)
The ball is fixed by trunnion and stem for size 4” &smaller. Trunnion plate support for size 6” & larger
| Design Standard | API6D | |||||
| Pressure-Temperature Rating | ASME B16.34 | |||||
| Face to Face | API6D | |||||
| Flange Ends | ASME B16.5, ASME B16. 47 | |||||
| Buttwelding ends | ASME B16.25 | |||||
| Inspection & Test | API598/ API6D | |||||
| Test Pressure | Shell Test | CL150 | CL300 | CL600 | CL900 | CL1500 |
|
High Pressure Seal Test |
2.93 | 7.55 | 15 | 22.4 | 37.5 | |
|
Low Pressure Seal Test |
2.07 | 5.52 | 11.03 | 16.54 | 27.5 | |
