Product Description

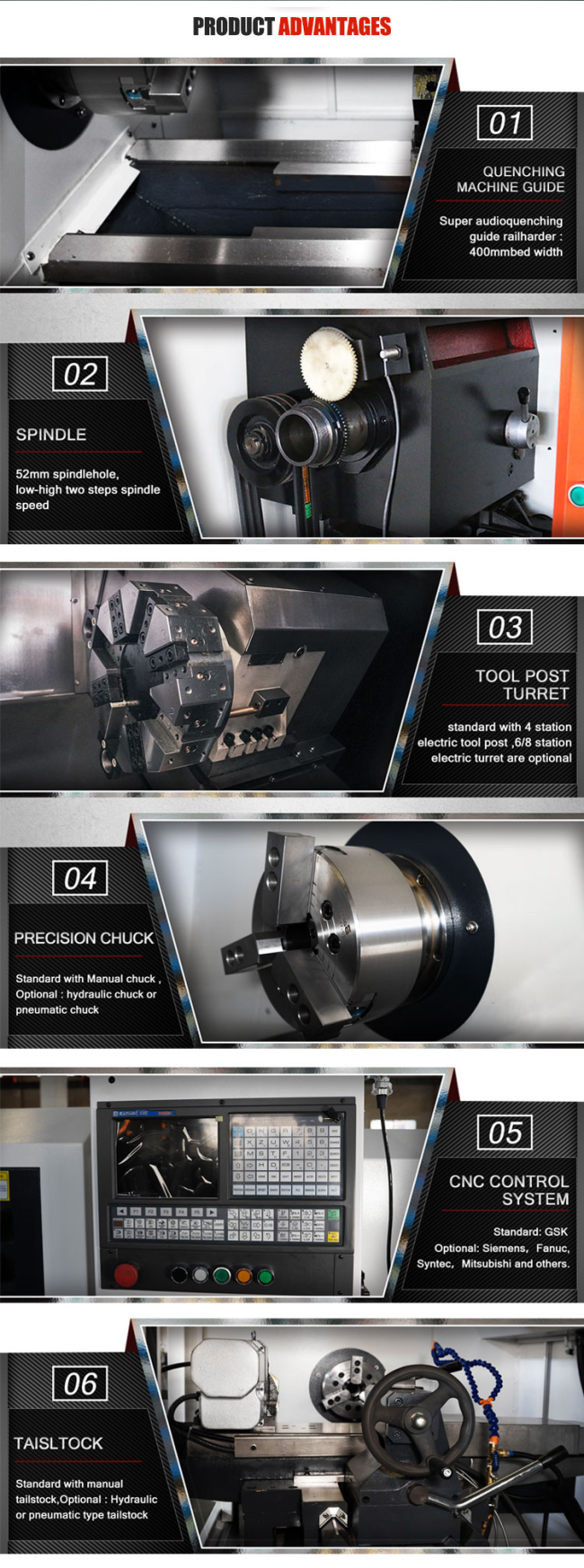

CNC lathe machine for precision threads cutting
|
Specification
|
CK6432×500/750mm
|
|
Max.swing over bed
|
Φ360 mm
|
|
Max.swing over carriage
|
Φ150 mm
|
|
Distance between centers
|
500/750mm
|
|
Spindle bore
|
60mm
|
|
Spindle nose
|
A2-6
|
|
Rail width
|
260mm
|
|
Taper of spindle bore
|
MT6
|
|
Chuck
|
8"
|
|
Range of speed (Variable)
|
150-2500 rpm
|
|
X axis travel
|
350mm
|
|
Z axis travel
|
500/750mm
|
|
X/Z rapid speed
|
4/7m/min
|
|
X/Z screw
|
2004/4006
|
|
Station of toolpost
|
4 or 6 or 8
|
|
Max. section of tool
|
20x20mm
|
|
Stroke of tailstock sleeve
|
100mm
|
|
Dia./hole of tailstock sleeve
|
50mm/MT4
|
|
Main motor power
|
3.7kw
|
|
Coolant pump power
|
120w
|
|
Overall dimenstion (L*W*H)
|
1740/2000x1210x1650mm
|
|
Packing size (L*W*H)
|
1960/2230x1410x1990mm
|
|
NW/GW
|
1275/1450kg;1450/1600kgs
|
