Grade 80 3m Lift 1T 5T HSC Manual Chain Pulley Block
Chain Fall Come Along 1 Ton Manual Chain Block
PRODUCTS DETAILS:
Model: HSZ-C
Lifting Capacity: 1T
Lifting Height: 3m
Color: lemon yellow
Load Chain: grade 80, 6mm diameter
Load Chain Color: blacken
Hook: forged + heat treatment + polishing + brake painting
PRODUCTS DESCRIPTION:
Model HSZ-C series chain block is our matured supplied products, advanced in design, reliable in quality and superior in appliance. They possess good features as HSZ series chain blocks in equilateral triangle appearance, looking more special and nice. The operation is more safe, the loading chains will not be easily twisted, so some accidents that possible happeded in the operation can be avoided effectively. Besides, it is greater in mechanical efficiency, lighter (20% lighter than the same other products) in weight and much more portale compared with others.The attched loading chains are produced according to ISO3077 standard. They are your first choice to use in outdoors or under the condition of no power.
PRODUCTS SPECIFICATION:
| Model | HSZ-1/2C | HSZ-1C | HSZ-1.5C | HSZ-2C | HSZ-2C | HSZ-3C | HSZ-5C | HSZ-10C | |
| Capacity | Ton | 0.5 | 1 | 1.5 | 2 | 2 | 3 | 5 | 10 |
| Lift | m | 2.5 | 2.5 | 2.5 | 3 | 2.5 | 3 | 3 | 3 |
| Test Load | Ton | 0.625 | 1.25 | 1.87 | 2.5 | 2.5 | 3.75 | 6.25 | 12.5 |
| Min.Distance between hooks | mm | 280 | 300 | 380 | 390 | 392 | 515 | 640 | 730 |
| Chain pull to lift full load | N | 170 | 340 | 390 | 340 | 340 | 390 | 420 | 450 |
| No. of load chain | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 4 | |
| Diameter of load chain | mm | 6 | 6 | 8 | 8.7 | 6 | 8 | 10 | 10 |
| Net weight | kg | 9.5 | 10 | 15 | 21.6 | 14 | 24 | 36 | 68 |
| Gross weight | kg | 10 | 10.5 | 15.7 | 23.6 | 14.5 | 24.8 | 37.3 | 79 |
|
Packing measurement (L X W X H) |
cm | 25*18*16 | 25*18*16 | 26*23*18 | 34*20*16 | 27*20*16 | 32*23*18 | 41*30*21 | 62*50*27 |
| Extra weight per meter of extra lift | kg | 1.7 | 1.7 | 2.3 | 2.6 | 2.5 | 3.7 | 5.3 | 9.7 |

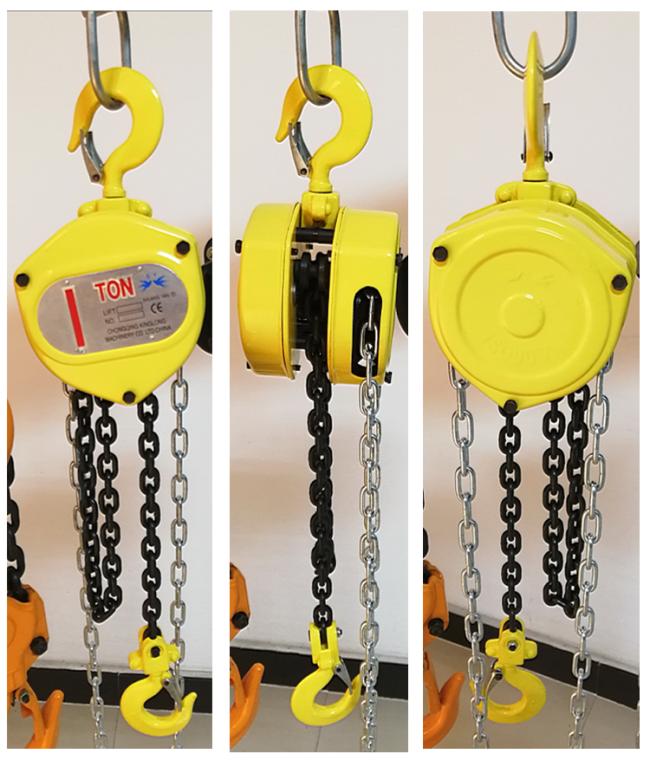

PRODUCTS SERIES SHOWING:
HSZ-C SERIES MASS PRODUCTS CORNER:
our every product was finished professionally, and pass the functional test before packing.

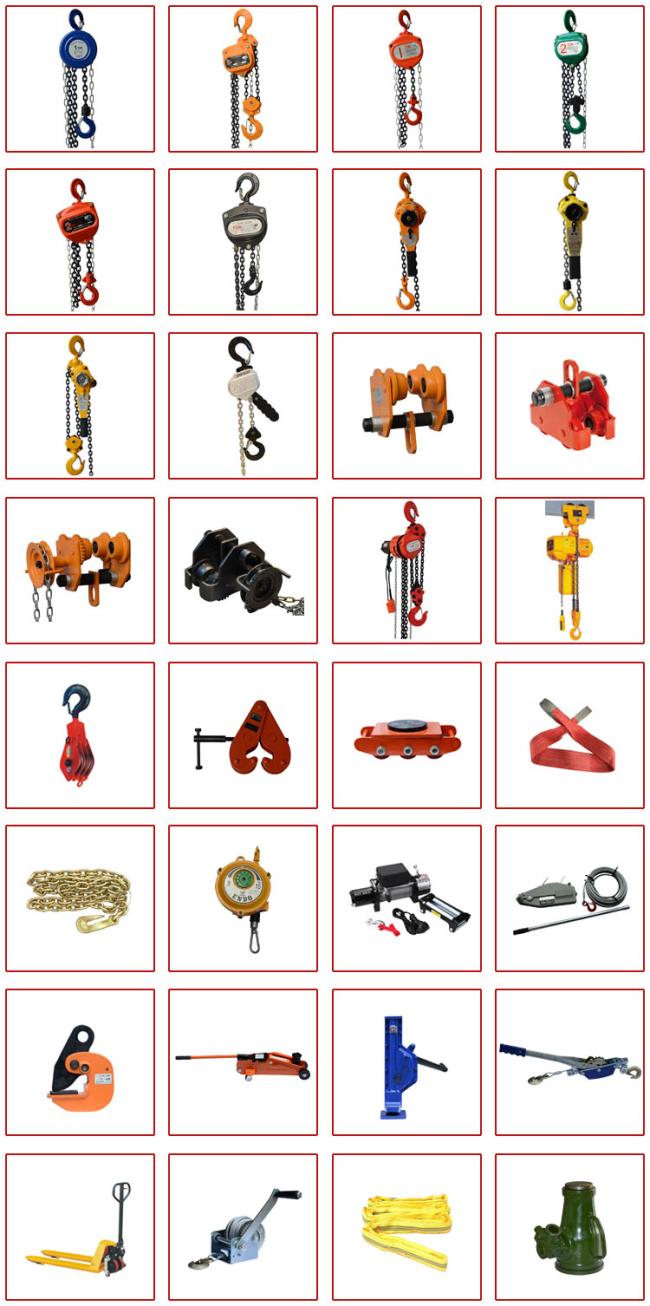

FACTORY OTHER PRODUCTS:
We have other chain block products like round classical HSZ model, new special HSZ-K model, the economic HSZ-CA model, upgraded HSZ-CB model, and the newest and hot HSZ-D model.
Besides, we have four types rachet lever chain block, HSHA, HSHB, HSH X and mini lever block.
For some using enviroment, there need other items to be a completed set, for example gear trolley, pulley block, beam clamp ect.
CERTIFICATION OF CE/ GS/ ISO 9001:
COMPANY INFORMATION:
1. Over 50 years experience in chain block eara
2. Most parts of chain block are designed and produced by ourselves
3. 27000 square meters factory
4. chain block assembly line, chain assembly line, many machines and equipments
5. ISO/GS/CE quality assurance.
6. Customers stable, employees stable, Finance stable
7. Every item was tested before package and pre-quality test before loading provided
8. Accept customization on many aspects relates to products
9. Good reputation in China, especially in Chongqing, famouse domestic brand"shuangyan", "shancheng"
