Samson Single-seated Type 3222 steel Globe Valve Flange connecting dimensions for PN 6 to 40
Samson Single-seated Type 3222 steel Globe Valve Flange connecting dimensions for PN 6 to 40
Product Introduction
Specifications
| Nominal size Globe valve with male thread connection or with flanged body DN | 15/20/25/32/40/50 |
| Nominal pressure PN | 25 |
| Seat/plug sealing | Metal seal for KVS ≤ 2.5 · Soft seal for KVS ≥ 3.6 |
| Rangeability | 50:1 |
|
Leakage class according to IEC 60534-4 |
Class I (≤ 0.05 % of KVS coefficient)
|
|
Duty type
|
S1 - 100 % according to EN 60034-1
|
|
Degree of protection
|
IP 54 according to EN 60529,
IP 65 with cable glands (can be retrofitted) 1)
Suspended mounting not permitted
|
|
Signal pressure (output)
|
0 bar up to the capacity of the supply pressure · Can be limited to approx. 2.3 bar by software
|
|
Permissible ambient temperature
|
–20 to +80 °C
–25 to +80 °C with metal cable gland
The limits in the test certificates additionally apply for explosion-protected versions
|
|
Influences
|
Temperature: ≤0.15 %/10 K
Effect of vibration: ≤0.25 % up to 2000 Hz and 4 g according to IEC 770
Supply air: None
|
Fail-safe position
For globe valves mounted to an actuator with fail-safe action, the control valve has two different positions which become effective upon power supply failure: Actuator stem extends – The globe valve closes upon power supply failure Actuator stem retracts – The globe valve opens upon power supply failure

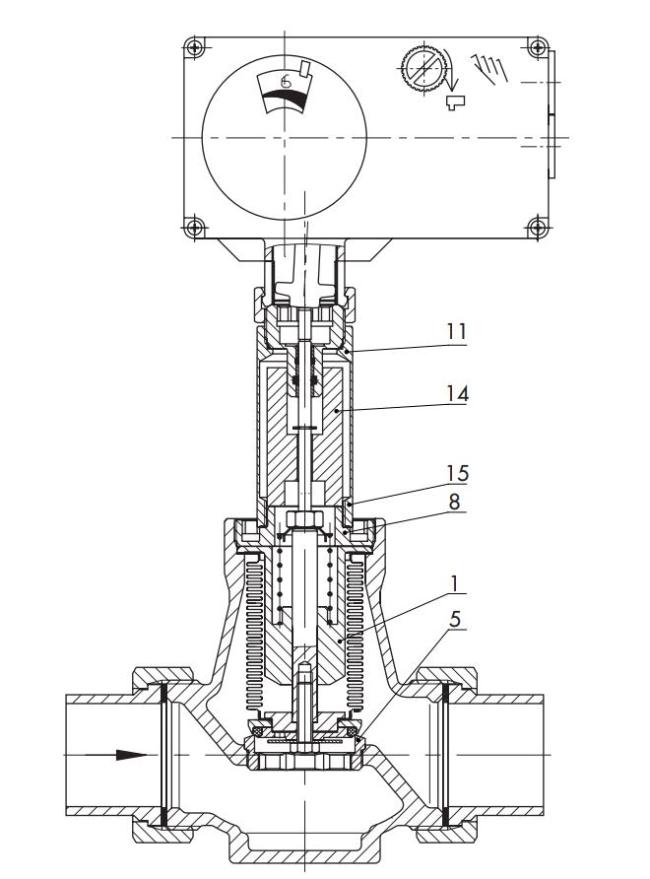

Detailed Image
Packaging and Delivery
Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)
The products will be shipped after receiving the deposit or full payment within 15 working days
Our Service
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection, repair, and maintenance, we can give all kinds of technical support.
5. Quickly response
Our staffs will keep 24h online and answer your question very quickly.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
