Samson Control Valves 3241 Globe Valve With 3277 Pneumatic Actuator And 3725 Positioner 4708 Regulator

Price Negotiable

Price: negatiation

MOQ: 1

Delivery Time: 4-12 week

Brand: SAMSON

Product Description

samson Control Valves 3241 globe valve with 3277 Pneumatic Actuator and 3725 positioner 4708 regulator


VALVE STYLE Globe valve USAGE

* Low-pressure service

* Throttling service

* Cryogenic service

VERSION ANSI

MEDIUM TEMPERATURE -196 to 425 °C / -320.8 to 797 °F

SUPPLY Pneumatic

VALVE SIZE NPS ½ to NPS 12

PRESSURE RATING Class 125 to Class 300

LINING without
Options

* Welding ends

* Adjustable packing

* Flow divider or AC-trim for noise reduction

* Insulating section or bellows seal

* Heating jacket

* Perforated plug

* Silencers

Special features

* Consisting of globe valve and actuator

* Optionally including RFID transponder with unique marking according to DIN SPEC 91406

Accessories

* Type 2 N Strainer

* Type 2 NI Strainer

Specifications

Reference variable	4 to 20 mA
Trave	5 to 50 mm
Opening angles	24 to 100°
Operating Temperature	Standard Temperature
Explosion protection	Intrinsic safety: ATEX, STCC,
Application	Gas& Oil industry

Special features


Special features Type 3241 Globe Valve operated with • Type 3271 Pneumatic Actuator (Type 3241-1 Control Valve)
• Type 3277 Pneumatic Actuator (Type 3241-7 Control Valve)
Valve body made of
• Cast iron
• Cast steel, cast stainless steel or cast cold-resisting steel
• Forged steel or forged stainless steel
• Special materials Undivided valve bonnet up to NPS 6
Valve plug
•Metal seal
• Soft seal
• High-performance metal seal Optional with RF ID tags with one-to-one device marking according to DIN SPEC

91406.
The control valves with their modular design can be equipped with various accessories: Positioners, limit switches,

solenoid valves and other accessories according to IEC 60534-6-1 1) and NAMUR recommendation. Refer to Information Sheet u T8350 for more details. Versions Standard version for temperatures ranging from 14 to 428 °F (–10 to +220 °C) – Type 3241-1 (Fig.1, Fig. 3) · NPS ½ to 12 · With Type 3271 Pneumatic Actuator (see Data Sheets u T 8310-1, u T 8310-2 and u T 8310-3) – Type 3241-7(Fig. 2, Fig. 4) · NPS ½ to 6
· With Type 3277 Pneumatic Actuator for integral positioner attachment (see Data Sheet u T 8310-1


Detailed Images

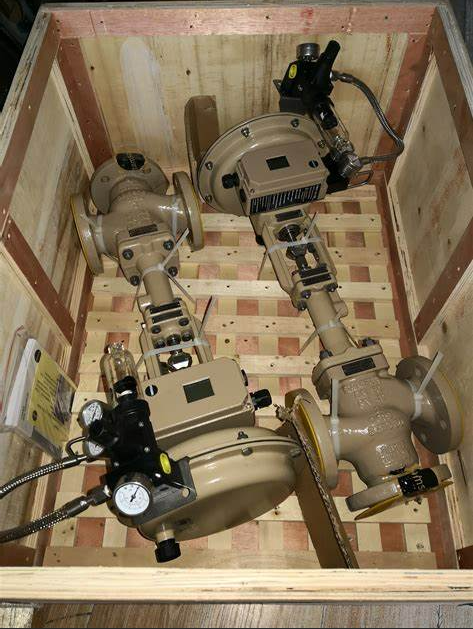

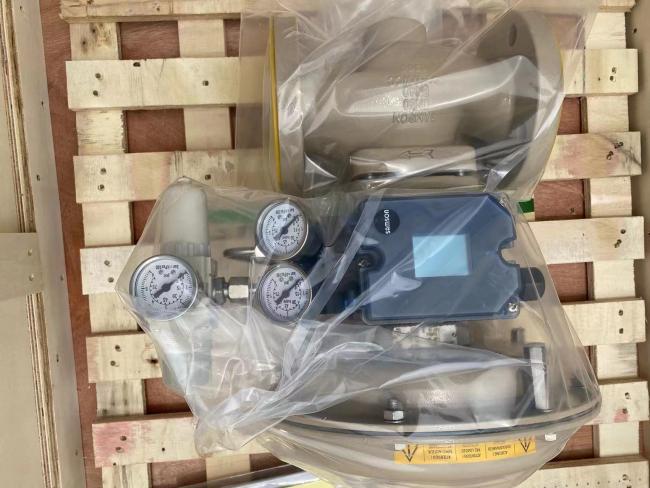

Packing & Delivery
