EVA Traffic Safety Highway Anti Corrosion Roller Barrier
EVA Traffic Safety Highway Used Anti Corrosion Roller Barrier

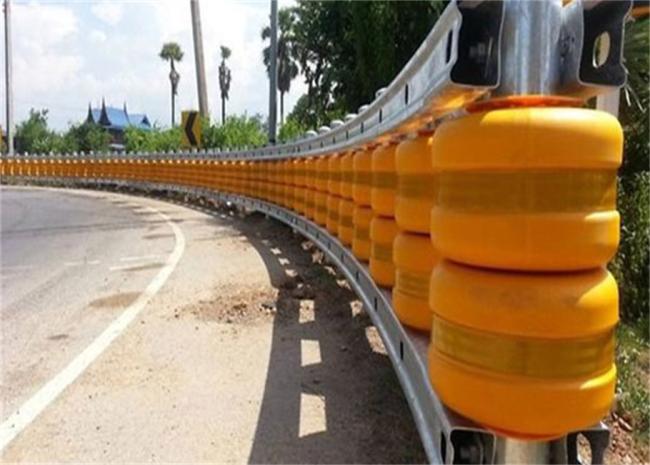

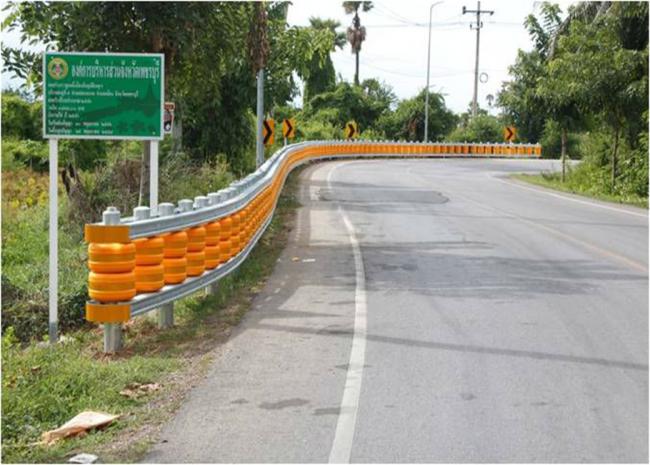

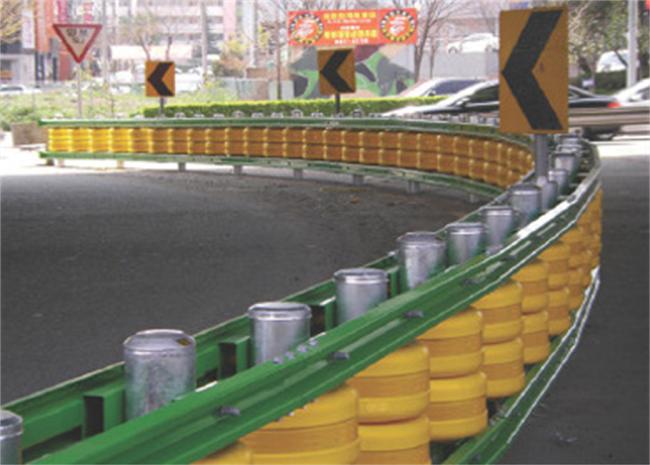

The guardrail is composed of columns, rotating cylinder, u-beam and connecting parts. All steel components are treated with hot-dip galvanized anti-rust treatment.The vertical column is separated by 1m or 0.7m, and two rotating cylinders are installed on each vertical column. This rotating cylinder takes EVA as the main material, and 17 auxiliary materials such as PE and related chemical additives are added.Continuous working temperature is between 60 ° and 70 °.These kinds of guardrails are usually installed on the ramp, continuous downhill and curved road of the expressway. When a vehicle hits a guardrail, the rotation function of the rotating cylinder itself and the good resilience of the cylinder body can greatly reduce the injury degree of the vehicle and the driver, and play a good protective role.There is a reflective strip on the rotating cylinder, and the evening star stone can reflect the outline of the route better through the light irradiation, which can play a good line of sight induction effect on the vehicle and further guarantee the safety of the vehicle.
Product Description:
· Features of Safety Roller Barrier
·Reduce speed by stopper board
·Guide reflective leads a driver to drive safely
·Recyclable material (eco-friendly)
·Help a vehicle turn back to the road by its spinning when the car crashed the rollers laterally
·Minimize fatal damage of people and vehicles by absorbing collision shock
·Reduce costs in repairing and maintenance due to Roller's resilience.
·Stopper boards help prevent larger accidents by slowing down Roller's spin
·Can be used for many years, less cost.
Advantages:
Low cost
High flexibility to install and repair
Cable tension and post space can be adjusted.
Prevent vehicles from running off the road effectively
Absorb most sudden impact energy during collision
Good looking for the usage in open scenic spots
Anti-rust, anti-corrosion and anti-aging
Reflective strips can be pasted on the rotating barrel to warn drivers at night. When the driver drives to an area without lights or the lights are too dark, the reflective strip can refract the light, thereby reminding the driver to drive safely.
Technical Parameters:
| No. | Name | Specifications(mm) | Material |
| 1 | Roller | 345*490/350*510(Customized) | Polyurethane |
| 2 | Post | 140*2000*4.5(Customized) | Q235 |
| 3 | PVC Tube | 160*500*6.5(Customized) | PVC |
| 4 | Beam | 100*80*4.0 | Q235 |
| 5 | Rolling Circle | 182×145×6.0 | Polymer Ethylene |
| 6 | End Socket | 1300×230×4.0 | Q235 |
| 7 | Post Cap | 145×145 | Rubber |
| 8 | Bolt | M18*120 | Q235 |
| M18*180 | Q235 | ||
| M18*80 | Q235 | ||
| 9 | Nut | M20 | Q235 |
| Item | Specifications |
| Apparent Density (KG/m³) | ≥125 |
| Tensile Strength(MPa) | ≥1.15 |
| Elongation(%) | ≥320 |
| Compression Permanent Distortion (%) | ≥38 |
| Resilience(%) | ≥72 |
| Chemical Composition | |||||||||||||||||
| C | Si | P | S | Mn | Ni | Cu | Cr | B | V | Mo | W | Al | Co | Pb | Se | Te | Bi |
| 0.18% | 0.001% | 0.022% | 0.013% | 0.38% | 0.002% | 0.001% | 0.002% | 0 | 0 | 0.001% | 0.001% | 0.002% | 0.001% | 0.001% | 0.001% | 0.02% | 0.03% |
