Ip68 Outdoor Fiber Splice Enclosure Wall Mounting 720/960 Core Ribbon Dome
Price:
Negotiable
MOQ:
10
Delivery Time:
3~5 days
Brand:
Unifiber or OEM
Product Description

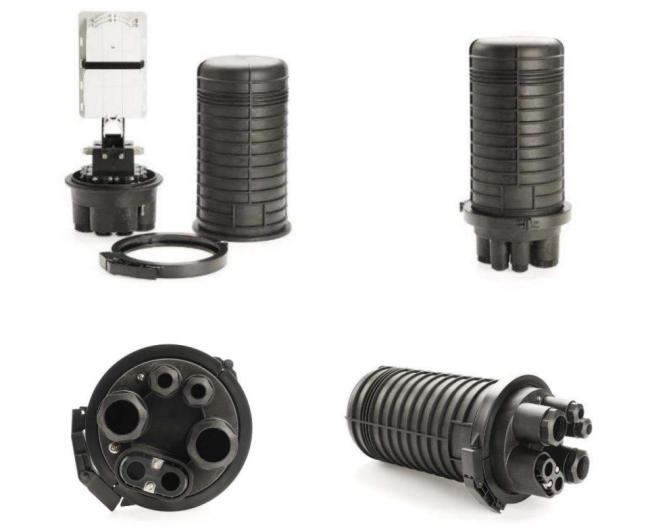

GPJ09L6-BJ provides protection for the direct connection and branching for different types of cables in optical transmission network. The housing of the closure employing self-tightening hoop achieves full seal as long as the hoop is completely tightened. The shaft-seal for the cable entries is suitable for different branching types, including the branching of uncut cables. The fiber closure is applicable to both single and ribbon fibers. Its adequate space for fiber coiling, together with the unique splice tray capable of both fiber coiling and splicing, completely satisfy the coiling need for fiber reservation.
| Model No. | GPJ09L6-BJ | |||
| Style | Dome/ Vertical | |||
| Dimensions (mm) | 480 × Φ260 | |||
| Material | PP+GF | |||
| Sealing Type | Mechanical Seal | |||
| Protection Grade | IP68 | |||
| Cable Ports | Uncut | Oval | 1 | Φ8 - Φ22 mm |
| Branch | Round | 2 | Φ6 - Φ14 mm | |
| 2 | Φ8 - Φ18 mm | |||
| Fiber Splice Capacity | Single | 240 | ||
| Ribbon | 720/ 960 | |||
| Tray Capacity | Single | 24 | ||
| Ribbon | 6/ 8 | |||
| Tray Count | 10 | |||
| Weight (kg) | 5.0 - 5.5 | |||
| Application | Wall Mounting/ Pole Mounting/ Manhole | |||
| Packing Type | Inner Carton | 480×275×245 mm (1 PCS) | ||
| Outer Carton | 570×500×540 mm (4 PCS) | |||
