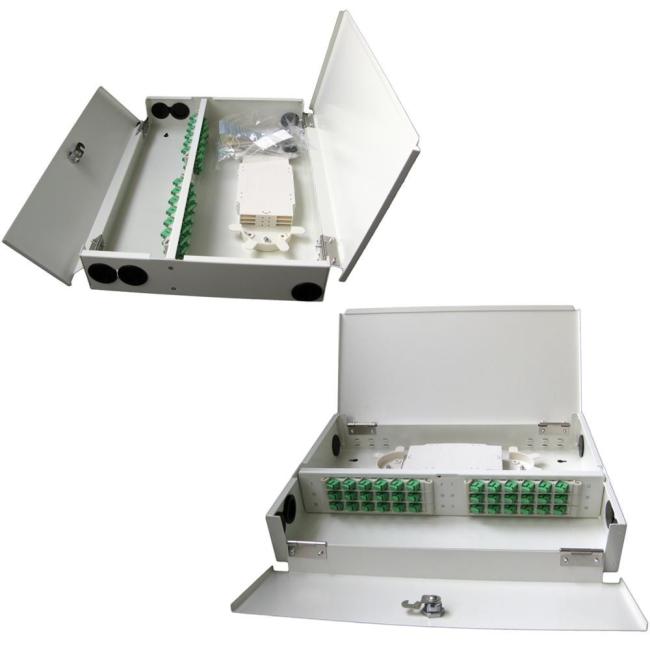

Indoor Sc / Apc Wall Mounted Fiber Enclosure 12/24/36/48 Ports
Product Description:
Indoor Wall-mount Fiber Optic Distribution Frame can manage both single fiber and ribbon & bundle fiber cables for indoor using. There are FC, LC, SC, ST output interfaces optional, and large working space to integrate the pigtails, cables and adapters.
Festure:
1. With cold-roll steel box, splicing unit, distribution unit and panel
2. Various panel plate to fit different adapter interface
3. Adapters can be installed: FC, SC, ST, LC
4. Suitable for single fiber and ribbon & bundle fiber cables
5. Special design ensures the excess fiber cords and pigtails in good order
6. No interval and easy for management and operation
Application:
1. Telecommunications subscriber loop
2. Fiber to the home (FTTH)
3. LAN/ WAN
4. CATV
Specification
|
Model
|
Fiber Quantity
|
Dimension(mm)
|
Weight(Kg)
|
|
Indoor Wall Mounted Fiber Enclosure
|
96
|
560X480X265
|
11.5
|
|
Indoor Wall Mounted Fiber Enclosure
|
48
|
400x380x140
|
5.8
|
|
Indoor Wall Mounted Fiber Enclosure
|
24
|
405x382x85
|
4.2
|
|
Indoor Wall Mounted Fiber Enclosure
|
12
|
300x300x85
|
3
|
