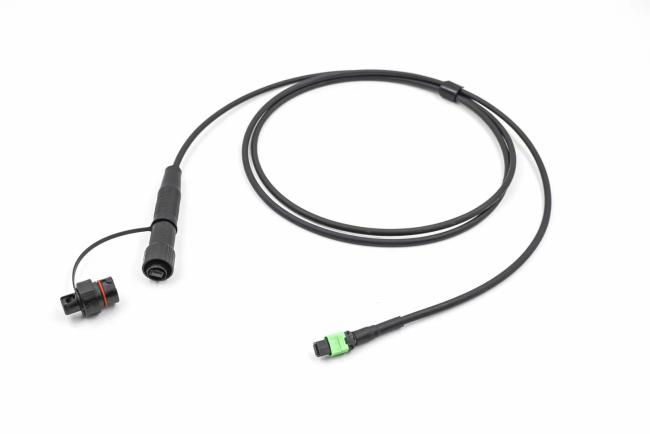

Outdoor IP67 Waterproof Pre Terminated Cable Huawei Mini MPO Reinforced Connector

Price Negotiable
Price: Negotiable
MOQ: 10
Delivery Time: 3~5 days
Brand: Unifiber or OEM
Product Description

MINI-MPO waterproof reinforced connector, is a small high waterproof MPO core waterproof connector. Built-in MPO connector core, to better reduce the size of the waterproof connector. It is made of special plastic shell (which is resistant to high and low temperature, acid and alkali corrosion resistance, anti-UV) and auxiliary waterproof rubber pad, its sealing waterproof performance up to IP67 level. The unique screw mount design is compatible with the fiber optic waterproof ports of Huawei equipment ports. Suitable for 3.0-5.0mm single-core round cable or FTTH fiber access cable.



Features:
1. Spiral clamping mechanism ensures long-term reliable connection
2. Guide mechanism, can be blinded with one hand, simple and quick, connect and install
3. Seal design: It is waterproof, dust-proof, anti-corrosion and so on.
4. compact size, easy to operate, durable
5. Through the wall seal design
6. Reduce welding, connect directly to achieve interconnection



Product parameters:
Insertion loss
≤ 0.2db
Repeat ability
≤ 0.5db
Return loss
≥65dB (APC); 55dB(UPC)
Operating temperature
-40 to 85°C
Mating time
≥ 1000 times
Waterproof grade
IP67
