LC/UPC Singlemode Outdoor Armored Fiber Patch Cable Crush Resistant 4 Fiber TPU 250m
Description of 4 fiber LC/UPC singlemode outdoor tactical armored fiber patch cable assembly
This tactical fiber cable assembly is designed for Broadcast & Pro-AV deployment applications and meets all outdoor tactical needs for applications requiring an outdoor rated crush and impact resistant design.Unifiber can supply it with any specified length with LC,FC,ST,SC connectors, it can carry with the portable cable reel if it is required.
Features
It is light weight and easily to carry
Crush resistant, pressure and high strength-to-weight ratio
With good flexibility and is easy to bend
Oil-resistant, wear-resistant, flame-retardant
Wide temperature range
4/6/8/12 Core with 1~250m length customized
Application
Suitable for military field communication systems
fast wiring or repeated deployment
Oil fields, mines, ports, live television broadcasting
Emergency repair of communication lines, etc
Specification
|
Specification
|
Single Mode
|
Multi Mode
|
||
|
Parameter
|
PC
|
UPC
|
APC
|
UPC
|
|
Operating Wavelength
|
1310nm, 1550nm
|
850nm, 1300nm
|
||
|
Insertion Loss
|
≤0.3dB
|
≤0.2dB
|
≤0.3dB
|
≤0.2dB
|
|
Return Loss
|
≥40dB
|
≥50dB
|
≥60dB
|
≥30dB
|
|
Fiber Type
|
G652D,G655, G657A1, G657A2, G657B3
|
OM1/OM2/OM3/OM4/OM5
|
||
|
Fiber Brand
|
YOFC, Corninng
|
|||
|
Exchange
|
≤0.2dB
|
|||
|
Repeartability
|
≤0.2dB
|
|||
|
Durability
|
> 1000 times
|
|||
|
Connectors Type
|
SC, LC, FC, ST or specified
|
|||
|
Fiber Count
|
4, 6, 8, 10, 12 Cores
|
|||
|
Sheath Material
|
TPU
|
|||
|
Cable Diameter
|
φ5.0±0.2mm or Specify
|
|||
|
Length (M)
|
Customized
|
|||
|
Operating Temperature
|
-40℃~+60℃
|
|||
|
Storage Temperature
|
-45℃~+85℃
|
|||
|
Compliant Standards
|
CE,RoHS, REACH and IEC
|
|||

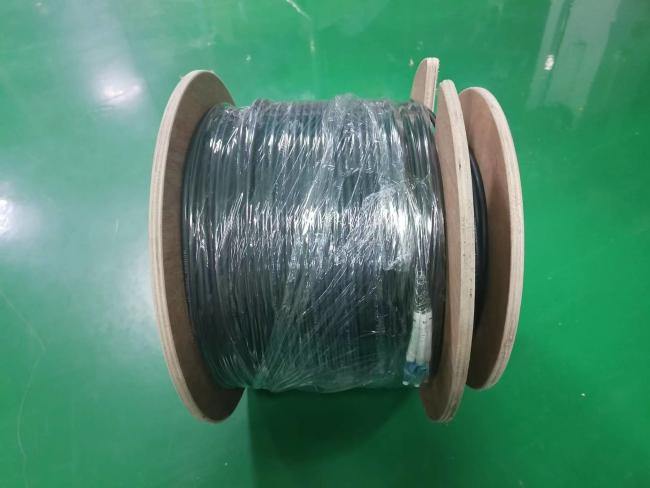

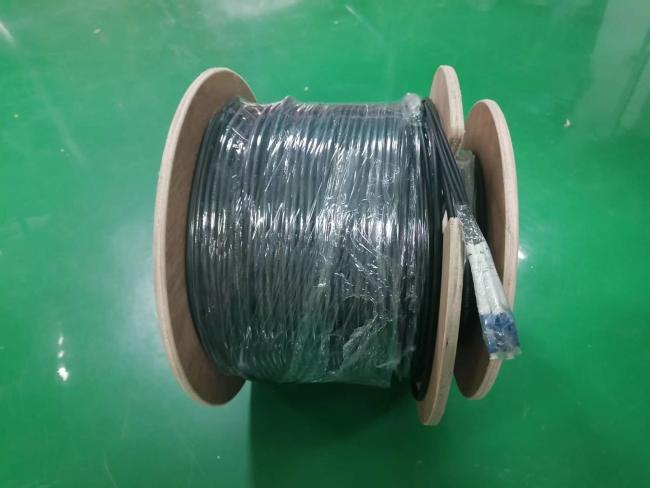

Picture of 4 fiber LC/UPC singlemode outdoor tactical armored patch cord
