1x2 1310/1550nm Fiber Optic Splitter Module 3.0mm Round Cable Elite MPO/APC Male
Price:
Negotiable
MOQ:
10
Delivery Time:
3~5 days
Brand:
Unifiber or OEM
Product Description
Description of MPO Fiber Optic Splitter Module

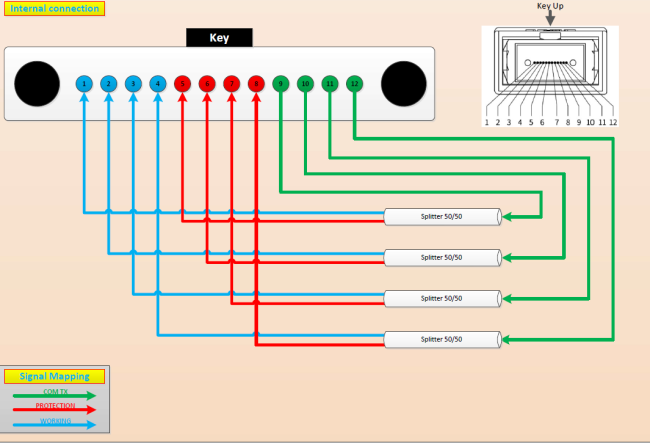

This module packed with 4pcs of 50/50 splitting ratio 1x2 FBT coupler in 80x60x12mm ABS box,it works with1310/1550nm,with 0.5m 3.0mm round cable, Elite MPO/APC(Male).
Application:
FTTH network
Passive optical network (PON)
Optical fiber CATV
Optical fiber communication system
Optical fiber testing equipment
Optical fiber sensors
Local area network (LAN)
Features:.
Low insertion loss
Low polarization dependent loss (PDL)
Good directivity
High temperature stability
Specification:
| Parameters | Specifications | Unit |
| Operating Wavelength | 1310 ±40 and 1550±40 | nm |
| Splitting Ratio | 50/50 | / |
| Insertion Loss1 | ≤4.3 | dB |
| Polarization Dependent Loss | <0.15 | dB |
| Directivity | >55 | dB |
| Return Loss | >45 | dB |
| Operating Temperature | -10~+70 | ℃ |
| Storage Temperature | -40~+85 | ℃ |
| Operating Relative Humidity | 5~95 | % |
| Storage Relative Humidity | 5~100 | % |
| Pigtail type | 3.0mm round cable | |
| Fiber Length | 0.5(±0.05) | m |
| Connector | 12 Core Elite MPO/APC(M) | / |
| Package size | 80x60x12 | mm |

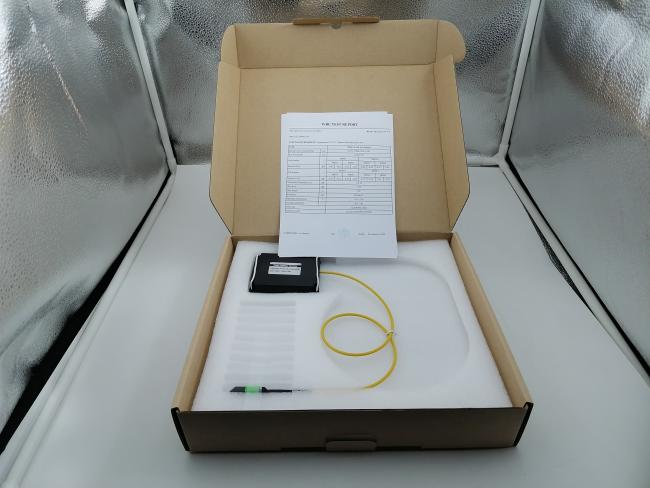

Picture of MPO Fiber Optic Splitter Module
