Description of Outdoor Pre-connectorized Drop Cable TW Hybrid Fast Connector Compatible Huawei Mini Sc/apc Corning Optitap

It can mate with Corning OptiTap™ adapter and Huawei mini SC adapter. TW hybrid connector makes change different connecting method in field possible. TW cable assemblies provide the most cost-effective method of deploying optical fiber in outside plant distribution networks at speeds significantly fast than traditional field installations.
TW hybrid connector guarantees an easy, one-step connection system with the combined push-pull insertion and nut-style mechanical latch. It provides quick installation solutions and has good performance on mating with Corning OptiTap™ adapter and Huawei mini SC adapter. Cable can be 5.0mm round and Fig.8 drop type.



TW connector---Un-assemblied Huawei connectors

Main body+ hw housing for ready to install hw adapter



TW connector---Assemblied Huawei connectors

Main body+ hw housing for ready to install hw adapter



TW connector---Un-assemblied OPT connectors

Main body+ OPT housing for ready to install OPT adapter



TW connector---Assemblied OPT connectors

Main body+ hw housing for ready to install hw adapter



Application

FTTx ISP Project.

Remote wireless Base Station.

Outdoor harsh outdoor environments.



Features

Suitable for connect Huawei FAST adapter and Corning OPT adapter
Connector inner low loss parts conforms to the SC-APC standard of IEC61754-4
With the functions of waterproof, dustproof and corrosion resistance
Suitable for 5.0mm round and Fig.8 drop type



Specification

Application cable	3.0mm 5.0mm Round drop cable,2.0*3.0mm 2.0*5.0mm figure-8 fiber cable.
IL( dB)	≤0.15dB(Typical value) ≤0.3dB(maximum value)
RL( dB)	≥60 dB
Mechanical durability	50 times IL≤0.3dB
Tensile strength	≥200N
Operating temperature	-25℃+85℃
Waterproof level	IP68

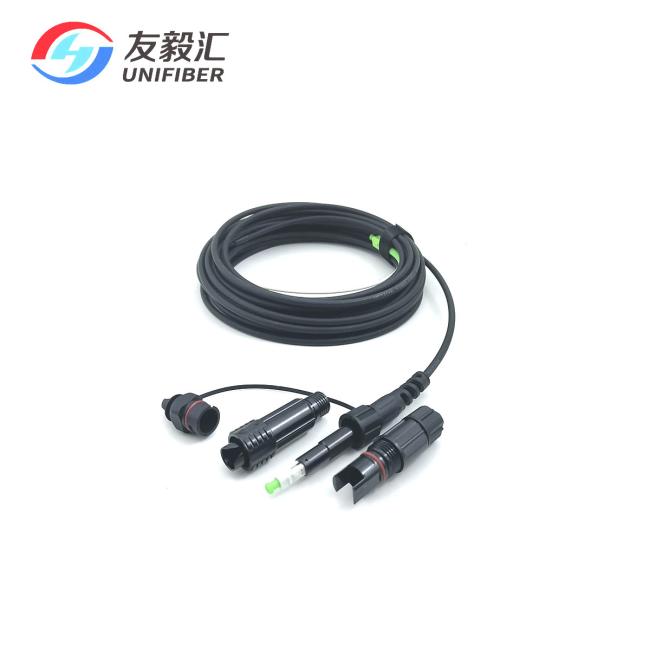

Picture of Universal pre connected SC/APC connector for connect Huawei FAST adapter and Corning OPT IP mini adapter
