FTTH 16 Port Fiber Terminal Box Pre Loaded With Huawei Mini SC Connector IP68 Waterproof
Description of IP68 Outdoor Waterproof FTTH 16 Port Fiber Terminal Box With Huawei Mini SC Connector
This 8/16 Port Fiber Nap Termination Box can connect the drop cable with feeder cable as the termination point in the Fttx network, it can meet at least 16 end users, with function of splicing, splitting, storage and management with suitable space.
Features
Made of high quality engineering plastic with good strength
IP68 Waterproof grade
With Huawei mini SC hardended connector pre loaded
This terminal box can be installed and maintained easily
The fusion and termination are completely separated
It can be installed with 2 pcs of 1*8 tube splitter
Application
FTTX
Fiber optic network convergence
Optical fiber access network
Widely used in FTTH access network
Specification
| Name | FTTH 16 Port Fiber Terminal Box Pre Loaded With Huawei Mini SC Connector IP68 Waterproof |
| Capacity | 16 Core, Huawei Mini SC IP rated Waterproof connectors |
| PLC Splitter | 1x16 SC Mini Stainless Steel Tube Type PLC Splitter |
| Dimension(HxWxD) | 32X21.5X13CM |
| Cable Ports | 16 Ports |
| Sealing Structure | Mechanical Sealing |
| Installation | Wall-mounted / Pole-mounted / Aerial Installation |
| Material | PC+ABS |
| Weight | 2.1KGS |
| Protection Level | IP68 |

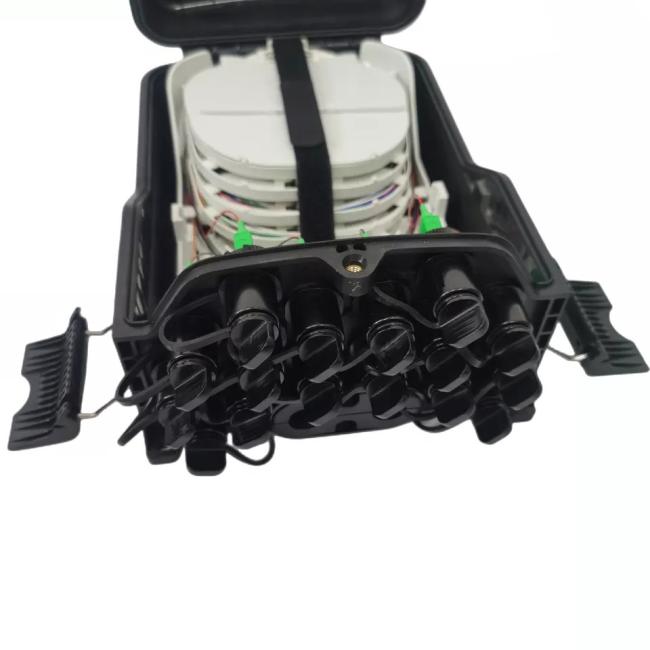

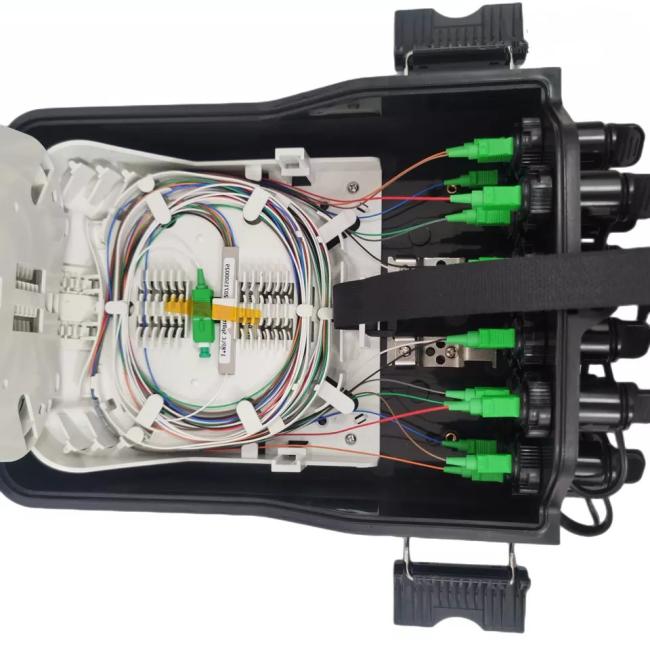

Picture of 16 Ports Huawei mini SC Pre-Terminated NAP Fiber Enclosure
