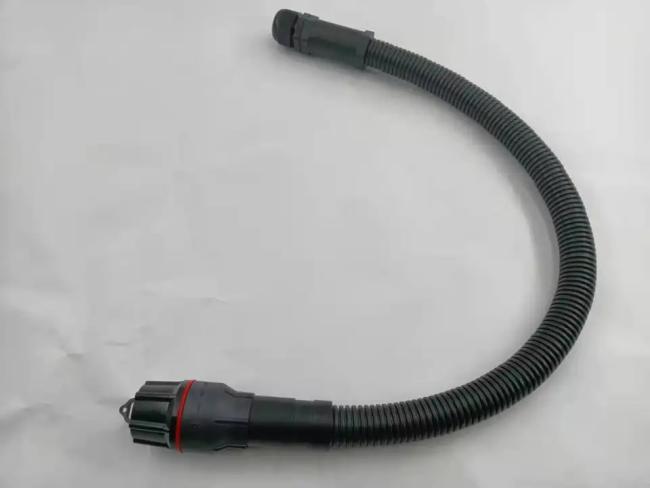

Fullaxs LC Duplex Fiber Cable Assembly Ruggedized With PG Gland Extension Tube

Price Negotiable

Price: Negotiable

MOQ: 100

Delivery Time: 5~8days

Brand: Unifiber or OEM

Product Description

Ruggedized sealing system Full AXS Field Installation Kit Useable for LC Duplex, RJ45, Robust bayonet locking

Features
Ruggedized sealing system for fiber-to-the antenna and industrial application
Open bulkhead for easy access to SFP
Positive mechanical feedback to operator when fully mated
Useable for LC Duplex, RJ45, Power
Robust bayonet locking for easy, fast, and secure mating
Water proof (IP 65), dust proof and corrosion resistant

Application
WiMAX and LTE Base Stations;
Remote Radio Heads (RRH);
Industrial outdoor applications;
Robotics;
Aerospace & Defense.

No. of cable			2
Fiber Model			G.657A2
Strength Member	Material		Aramid yarn
Tight buffer	Material		PVC
	Diameter(±0.06)mm		0.9
	Thickness(±0.03)mm		0.32
Outer Sheath	Material		LSZH
	Thickness(±0.2)mm		1.0
Cable Diameter(±0.2)mm			5.0
Cable Weight(±5)kg/km			28
Min. bending radius		Without Tension	10.0×Cable-φ
		Under Maximum Tension	20.0×Cable-φ
Temperature range (℃)		Installation	-20~+60
		Transport&Storage	-40~+70
		Operation	-40~+70

Insertion loss	≤0.5dB
Return loss	SM/UPC≥50dB,SM/APC≥60dB,MM≥35dB
Mechanical life	500cycles
Working temperature	-40°C~+70°C
Storage temperature	-40°C~+70°C
Operating temperature	-10°C~+50°C
Protection Level	IP67
Tensile Data	Tensile between junction and fiber cable≥100N
Authentication	Meet with RoHS
