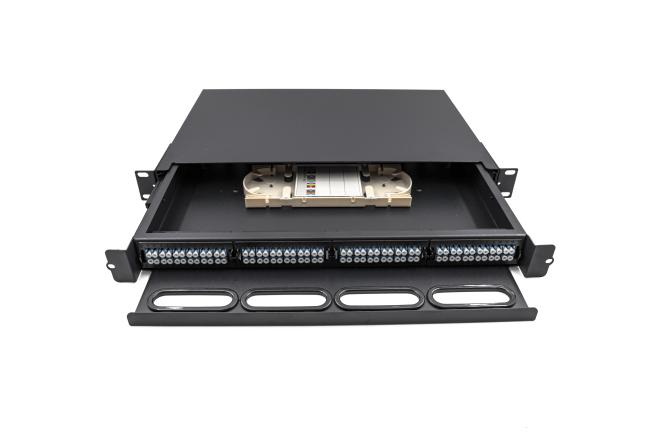

This 1U 96 Port HD Fiber Optic Patch Panel support 4 changeable adapter modules for LC or SC connector, it can do fiber splicing up to 96F with 2x 48F splicing trays, it also can support 4x MPO/MTP cassette modules. It’s an ideal solution for increasingly high-density cable management of data center.

Application
Data Center infrastructure;
Fiber Channel;

Storage Area Network;
Emerging 40 and 100Gbps protocols compatible.

Feature
It can also support with MPO/MTP cassette modules;

This patch panel support up to 96 single fiber splicing;

The rack mount ODF loaded with 2 splice trays, each trays support 48 fiber splicing;

The fiber enclosure with 4 separate changeable adapter plates;

It adopts standard unit structure size and is suitable for the installation of various cabinets and racks；
The back and side support multiple optical cables to enter, the optical cable inlet is enlarged to facilitate multiple optical
cables to enter, and fixed with optical cable fixing column or metal reinforcement.

Specificaiton
