240 core Mechanical Fiber Optic Splice Closure IP68 Dome Type 1 Oval port 4 round ports
Price:
Negotiable
MOQ:
10
Delivery Time:
5~8days
Brand:
Unifiber or OEM
Product Description
GPJ09-L6-BJ splice closure, which supports optical cable link and branch. The unique mechanical sealing design with a perfect sealing. It's suitable for wall-mounting, aerial, pole-mounting and grounding buried.
Features
High quality material of PP+GF
IP68 waterproof grade
Mechanical sealing
Single fiber or ribbon fiber splicing
Application
FTTx solution
Telecommunication
Specification
| Dimention(mm) | 465×φ260 | Maximum capacity(single core) | 240cores |
| weight(kg) | 4.2～4.8 | Sealing method | mechanical |
| Numbers of cable ports | 6ports(4ports for single cable,2ports for uncut cable) | Maximum capacity of one tray(single core) | 24cores |
| Diameter of suitable optical cable(mm) |
Small holeФ8～Φ17.5 Big holeФ10～Φ17.5 Elliptical holeФ10～Φ17.5 |
||
| Maximum numbers of trays | 10 | Insulation resisitance | ≥2×104MΩ |
| Environment temrature | -40℃～+65℃ | Voltage resistance strength | 15KVDC/1min no puncture, arc-over |

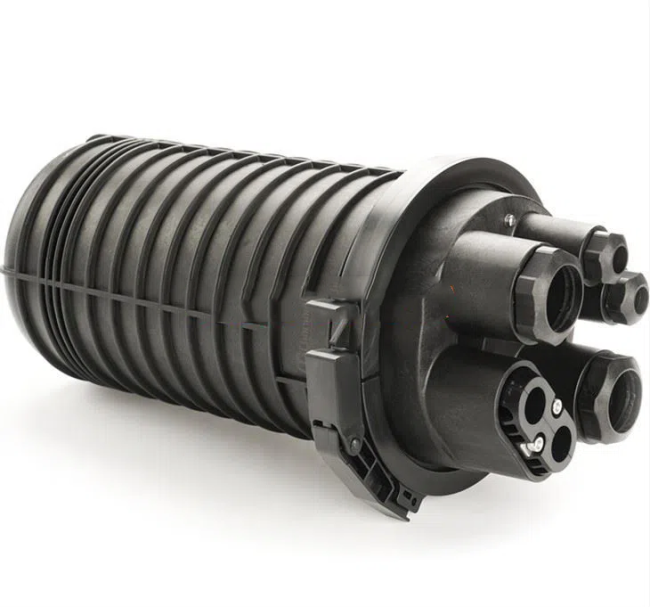

Picture of 240 core Mechanical Fiber Optic Splice Closure 1 Oval port + 4 round ports
