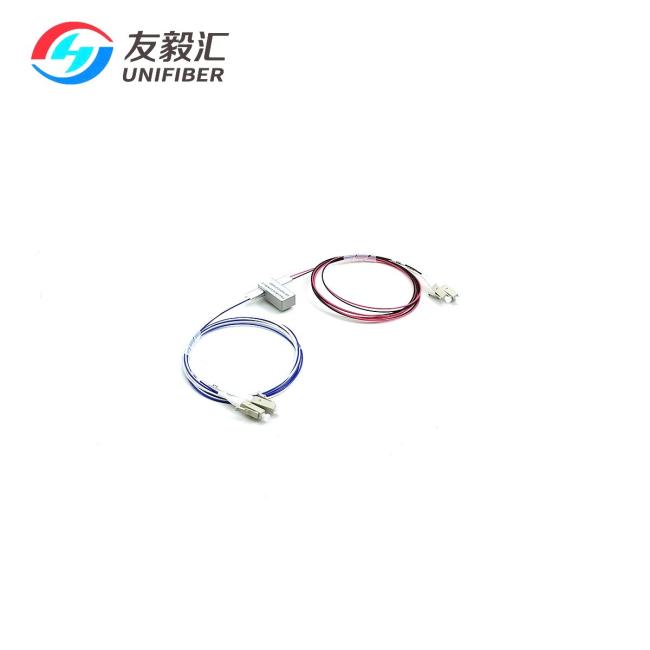

1x2 2x2 Multimode Mechanical Optical Switch Non-Latching 850nm 5V LC/PC

Price Negotiable

Price: Negotiable

MOQ: 10

Delivery Time: 5~8days

Brand: Unifiber or OEM

Product Description

2x2 Multimode Optical Switches are based on opto-mechanical technology with proven reliability. With the state-of-the-art technology, the performance is optimized for a wide range of fiber-optic applications

Features

Compact size

Low Insertion-Loss

Fit for industrial temperature range

RoHS compliance

Application

Optical network protection, configuration and restoration

Reconfigurable add/drop multiplexers

Signal loopback

Transmission equipment protection

Specification

Parameter	1×2-2x2 MM/SM
Wavelength Range(nm)	850±40	1260~1650
Operating Wavelength	850	1310/1490/1550/1625/1650
Insertion Loss(dB)	Typ:0.8 Max:1.2	Typ:0.5 Max:0.8
Return Loss(dB)	MM≥30 SM≥50
Crosstalk(dB)	MM≥35 SM≥55
Polarization Dependent Loss(dB)	≤0.05
WaveLength Dependent Loss(dB)	≤0.25
Temperature Dependent Loss(dB)	≤0.25
Repeatability(dB)	≤±0.02
Power Supply(V)	3.0 or 5.0
Lifetime(time)	≥10^7
Switch Time(ms)	≤8
Transmission Power(mW)	≤500
Operating Temperature(℃)	-20~+70
Storage Temperature(℃)	-40~+85
Weight(g)	16
Dimension(mm)	(L)27.0×(W)12.6×(H)8.0
