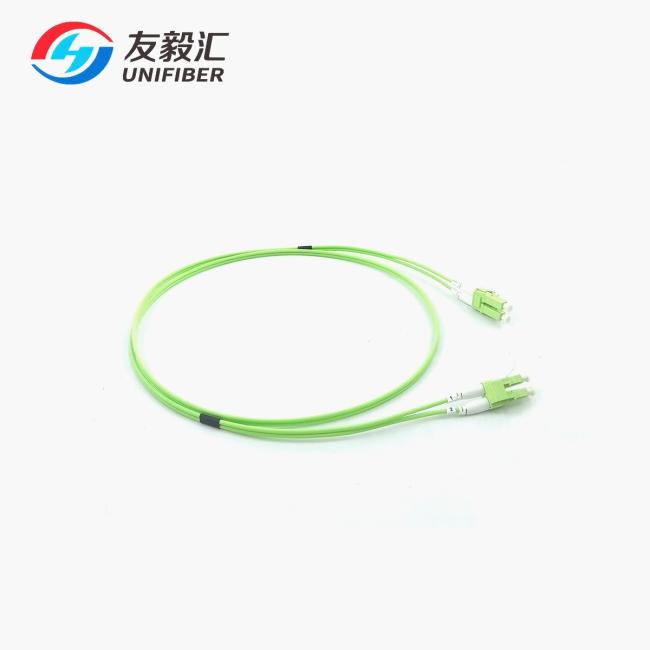

LC to LC Duplex Multimode OM5 Fiber Patch Cable 2.0mm LSZH 1M

Price Negotiable

Price: Negotiable

MOQ: 10

Delivery Time: 5~8days

Brand: Unifiber or OEM

Product Description

OM5 is a wideband multimode fibre, identifiable by a lime green outer jacket on duplex fibre cables.It has many of the same characteristics of OM4, including the same EMB value and distance limitations for 10GB, 40GB, and 100GB Ethernet. OM5 is intended for data centres and high speed applications that require shortwave division multiplexing (SWDM).

Features

Backward compatible with OM3 and OM4 applications

For 40/100 Gb speeds up to 300 meters (at 850 nm)

Rated OM5 to offer a wideband 50/125 multimode fiber solution

Laser-optimized for use with cost-effective VCSEL light sources

Lime green jacket for easy OM5 identification;

Application

Data Center Application

Telecommunication

40G/100G solutions

Specification

Parameters	LC to LC Duplex Multimode OM5 Fiber Patch Cable 2.0mm LSZH 1M
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
*All values specified are with connectors.
