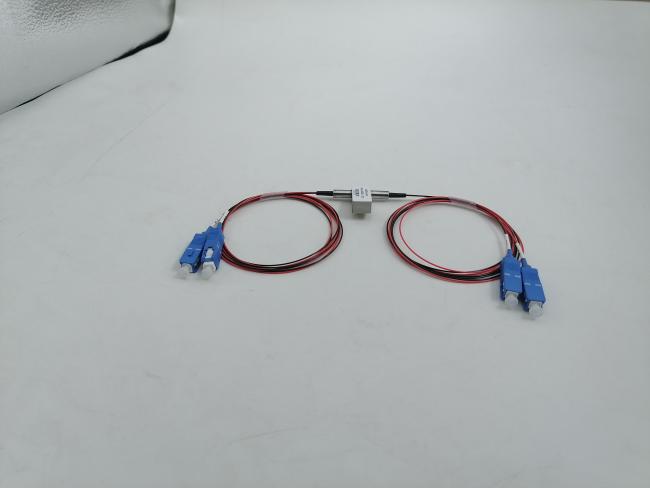

2x2 Bypass Mechanical Optical Switch 1310nm/1550nm No-Latching 3V SC/UPC

Price Negotiable

Price: Negotiable

MOQ: 10

Delivery Time: 5~8days

Brand: Unifiber or OEM

Product Description

2x2B Mechanical Optical Switch is used to turn on, turn off and switch optical signal. The 2x2B Mechanical Optical Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.

Features:

Short switching time

Highly Stable & Reliable
Compact design, Miniature size
Low Insertion Loss
Wide operating wavelength Range
Fail-Safe Latching and Non-latching
Single mode or Multimode optional

Application

System Monitor
Configurable OADM
Metropolitan Area Network
R&D in Laboratory

Specification

Parameter	2×2B-MM/SM
Wavelength Range(nm)	850±40	1260~1650
Operating Wavelength	850	1310/1490/1550/1625/1650
Insertion Loss(dB)	Typ:0.8 Max:1.2	Typ:0.6 Max:0.8
Return Loss(dB)	MM≥30?SM≥50
Crosstalk(dB)	MM≥45?SM≥55
Polarization Dependent Loss(dB)	≤0.05
WaveLength Dependent Loss(dB)	≤0.25
Temperature Dependent Loss(dB)	≤0.25
Repeatability(dB)	≤±0.02
Power Supply(V)	3.0 or 5.0
Lifetime(time)	≥10^7
Switch Time(ms)	≤8
Transmission Power(mW)	≤500
Operating Temperature(℃)	-20~+70
Storage Temperature(℃)	-40~+85
Weight(g)	16
Dimension(mm)	(L)27.0×(W)12.0×(H)8.2
