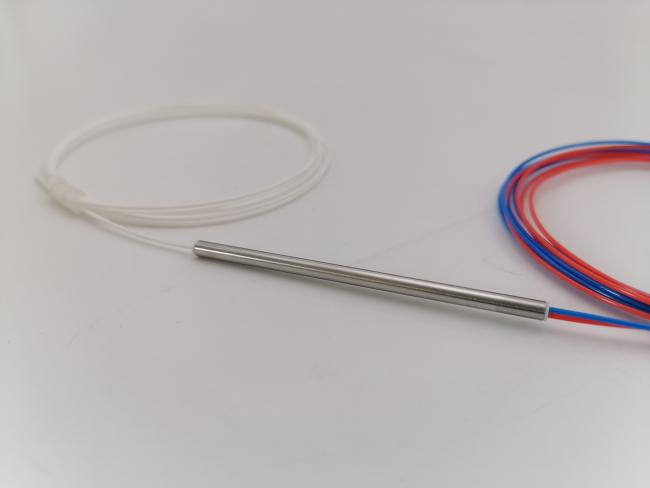

980/1550nm High Isolation 1x2 Single Mode WDM Coupler Splitter HI1060 FLEX 900um Loose Tube

Name: 980/1550nm High Isolation 1x2 Single Mode WDM Coupler Splitter HI1060 FLEX 900um Loose Tube
Brand: Shenzhen Unifiber Technology Co.,Ltd

Price Negotiable

Price: Negotiable

MOQ: 10

Delivery Time: 5~8days

Brand: Unifiber or OEM

Product Description

980/1550nm WDM/Tap Coupler Hybrid Combination is a combination of a wavelength division multiplexer and tap coupler in a compact package. All input and output fibers are polarization independent. This product has an extremely low insertion loss, a very stable tap-coupling ratio, high isolation, and high return loss. This product offers integrated solution to amplifier application by combining more functions into a very compact package.

Features

Mini size
High isolation
Low PDL
Low excess loss
High stability and reliability

Application

EDFA modules
WDM systems
Testing instruments

Specification

Type Parameter	980/1550 WDM		980/1590 WDM		1310/1550 WDM
Operating wavelength (nm)	980 and 1550		980 and 1590		1310 and 1550
Operating bandwidth (nm)	±10/20		±10/20		±15
Package dimensions (Ф×L) (mm)	Ф2.4/3.0×30, Ф2.4×25				Ф2.4×30
Grade	P	A	P	A	P	A
Insertion loss (dB)	≤0.25	≤0.35	≤0.25	≤0.35	≤0.25	≤0.35
Isolation (dB)	≥20	≥18	≥20	≥18	≥17	≥16
PDL (dB)	≤0.08	≤0.12	≤0.08	≤0.12	≤0.08	≤0.12
Fiber lead length	0.8 meter, others on request				1 meter, others on request
Directivity (dB)	≥55
Operating temperature (℃)	-40 ~ +85
Configuration	1×2 or 2×2
