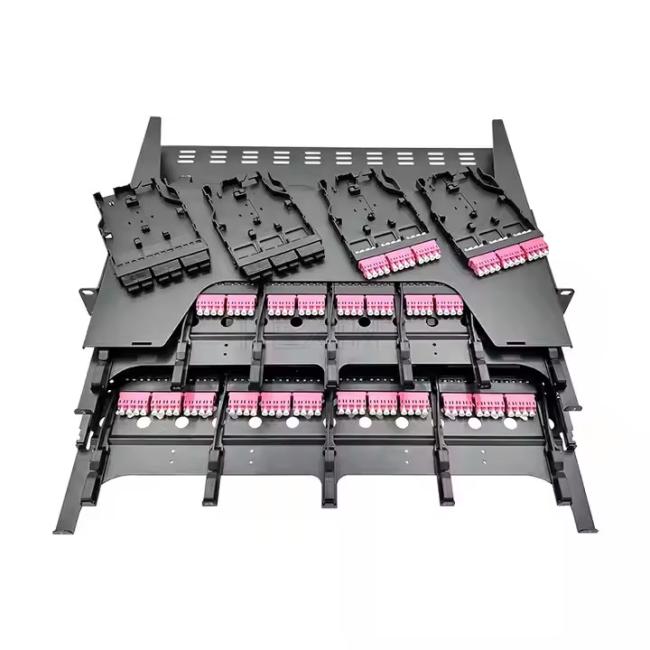

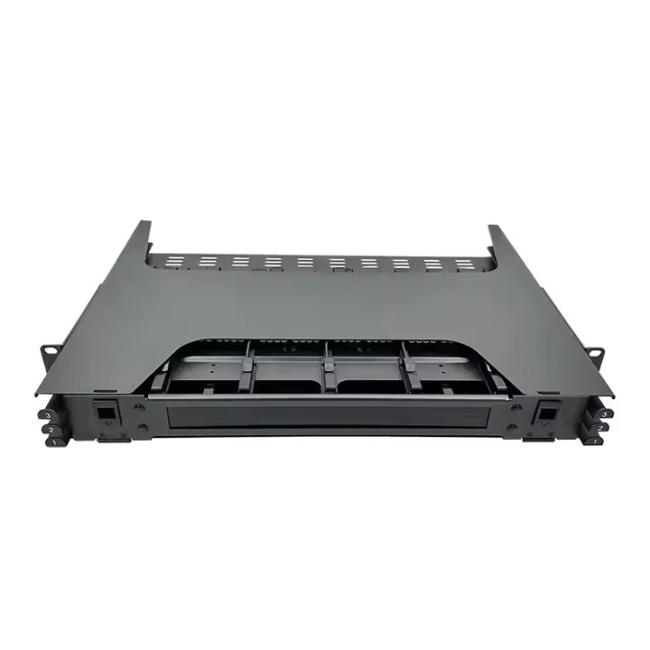

19 Inch 1U Sliding144 Port MPO/MTP Patch Panel with 8/12 Fiber Cassettes Multimode OM4

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 5~8days

Brand: OEM

Product Description

The MP6 and MPB6 series have modular designs and front and rear pull-out mechanical structures, which are the biggest features that differentiate this product from competing products, including rapid deployment, rapid response, and accurate troubleshooting. The optional LC adapter supports up to 1U-144F, 2U-288F, and 4U-576F, and the optional CS adapter supports up to 1U-216F

Feature

Modular design, can be pulled out by rails

Each floor can install 4 or 6 cassettes

Provides front and rear cable management functions* 1U supports up to 144-core LC or 216-core CS connections

2U supports up to 288-core LC, and 4U supports 576-core LC connections.

1U supports up to 1728-core MPO/MTP access

Support MTP/MPO-MTP/MPO conversion

Optional MTP/MPO/LC/CS connection

Support pigtail splicing

Application:

Data Center infrastructure;

Storage Area Network;

Fiber Channel

Specification

Model	Capacity	Material	Modules	Color
MP6-1U/144F	144 Fiber	cold rolled steel plate	8 or 12F cassette module	Black
MP6-2U/288F	288 Fiber	cold rolled steel plate	8 or 12F cassette module	Black
MP6-4U/576F	576 Fiber	cold rolled steel plate	8 or 12F cassette module	Black
