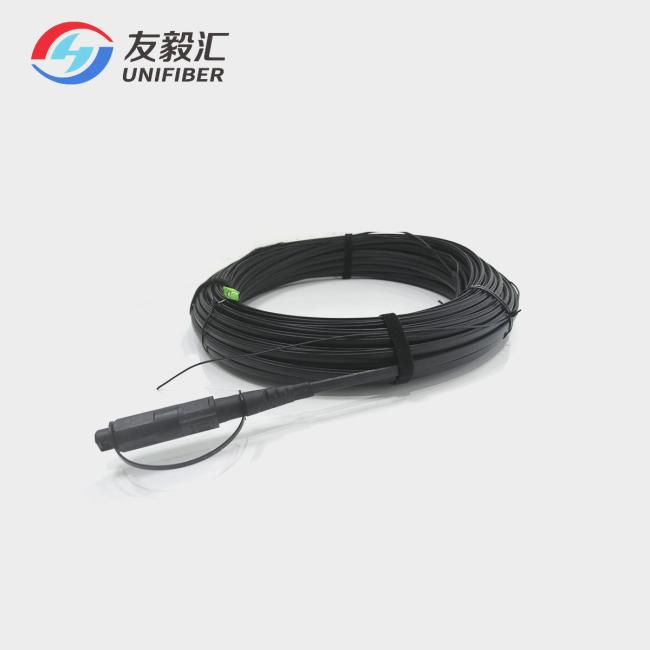

Toneable mini LT Flat drop cable offers compact, durable, and easy to locate optical fiber solution in a really accessible construction. The fiber optic cable's webbed design allows the locating wire to be easily separated from the main cable sheath by hands, providing simple, rapid routing and grounding of the locating wire. To construct the cable, up to 12 optical fibers are placed in a 2.0mm gel-filled buffer tube to creat a flexible, easy to access core. Then 2 FRP rods are placed diametrically opposite on either side of the fiber core, providing excellent crush resistance and tensile strength during installation and over the lifetime of cable. A 24AWG copper wire is aligned along the outside edge of one of the FRP rods to provide locatability The locating wire, strength member rods, and fiber core are then encapsulated in a durable PE jacket to create a flat cable cross section and lend added protection to the cable core. Between the locating wire and the adjacent FRP rods, the jacket forms a thin web that is easily separated by hand, allowing quick removal of the copper wire from the main sheath.

Features

​Low insertion loss value
Choice of housing and sleeve materials
Stable capability and high reliability
Excellent mechanical
IP-67 water and dust protection
No installation tools requires
Low profile in-line receptacle available

Application

Outdoor FTTP, FTTA
Broadband;
Telecom networks
Optical test equipments
Local area networks
Wide area networks

Specification
