2.0mm Fiber Optical Patch Cord , Lc To Sc Fiber Patch Cable PVC/LSZH/OFNR
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
Negotiable
Brand:
UNIFIBER
Product Description
LC to SC UPC Duplex OM3 Multimode PVC/LSZH/OFNR 2.0mm Fiber Optic Patch Cable

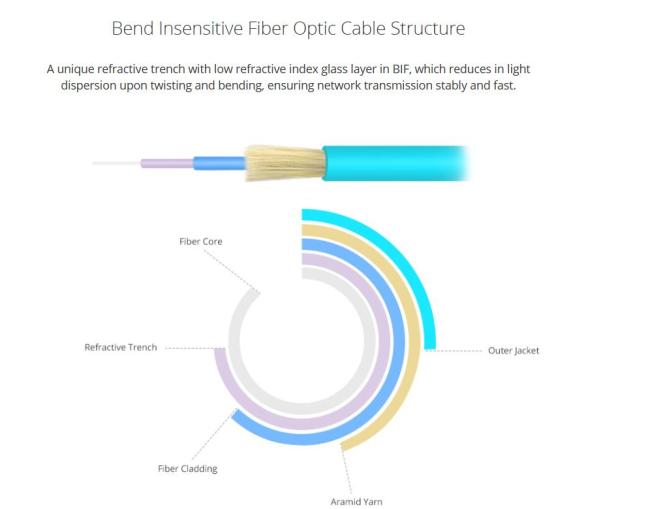

The 50/125μm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.
APPLICATION
1. Telecommunications
2. CATV, LAN, MAN, WAN, Test &Measurement
3. Military industry
4. Medical
FEATURES
1. Low insertion loss and back reflection loss
2. Ferrule end surface pre-domed
3. Excellent mechanical endurance
4. Good in repeatability
5. Good in exchange
6. Green Production, CE, RoHS Standard
Parameters
| Mode | Single mode | Multimode | |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.30dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥50dB | ≥60dB | ≥30dB |
| Test Wavelength | 1310/1550nm | 850/1310nm | |
| Durability(500 Matings) | ≤0.2dB | ||
| Operating Temperature | -40~+60 | ||
| Storage Temperature | -45~+85 | ||
| Fire Resistant | IEC 60794-2-30 | ||
| Standards-Compliant | ROHS,IEC and GR-326 | ||
| Fiber type | Single mode: | 9/125-G652D | 9/125-G655 | 9/125-G657A,G657A2 | 9/125-G657B3 | |
| Multimode: | 50/125-OM2 | 62.5/125-OM1 | 50/125-OM3 | 50/125-OM4 | 50/125-OM5 | |
| Fiber Brand | YOFC, Corning, Sumitomo, Fujikura | |||||
| Connector | SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC | |||||
| Cord type | Simplex ,Duplex | |||||
| Cable diameter | 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm | |||||
| Cable jacket | PVC, OFNR, LSZH, OFNP | |||||
| length(M) | 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized | |||||
