Low Insertion Loss FTTH SC APC Fiber Optic Fast Connectors 10pcs/pack
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
3~5 business days
Brand:
UNIFIBER-OEM
Product Description

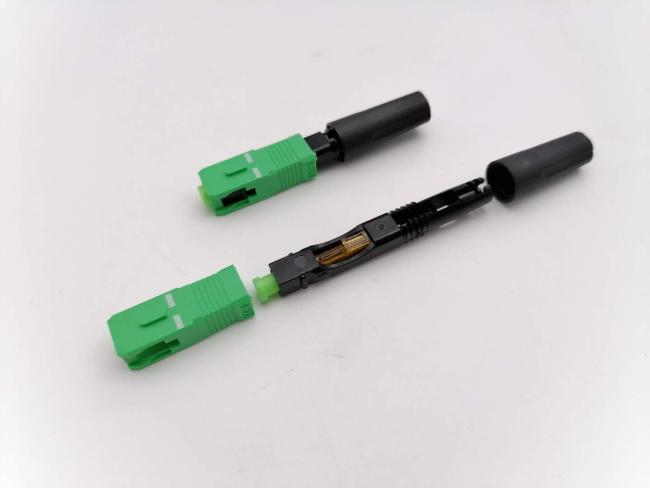

FTTH SC APC Fiber Optic Fast Connectors can provide quick and easy terminations of fibers in the field, and options are availablefor 900 micron and 250 micron. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens,with features of high installation quality, high success rate and high reliability.
Features:
FTTH project usable
Field installable
Insert loss less than 0.3dB
Metal V-shape cavity work well in high and low temperature
Installation less than 1 minutes
Reliable and superior optical performance
Field installable
Insert loss less than 0.3dB
Metal V-shape cavity work well in high and low temperature
Installation less than 1 minutes
Reliable and superior optical performance
Application:
FTTH Outlets
FTTH Outlets
Maintenance or emergency restoration of fiber networks
Patch panels
Patch panels
Distribution frames
Field Installation
| FTTH SC APC Fiber Optic Fast Connectors | |||
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss |
Typical ≤0.2dB Maximum ≤0.3dB |
≤0.25dB | |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (500 times mating) | ||
| Tensile Strengh | ≥50N | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
