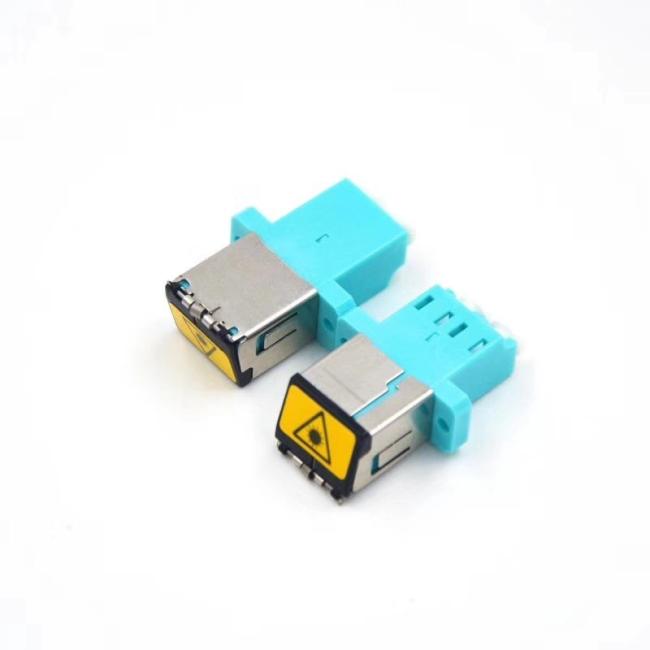

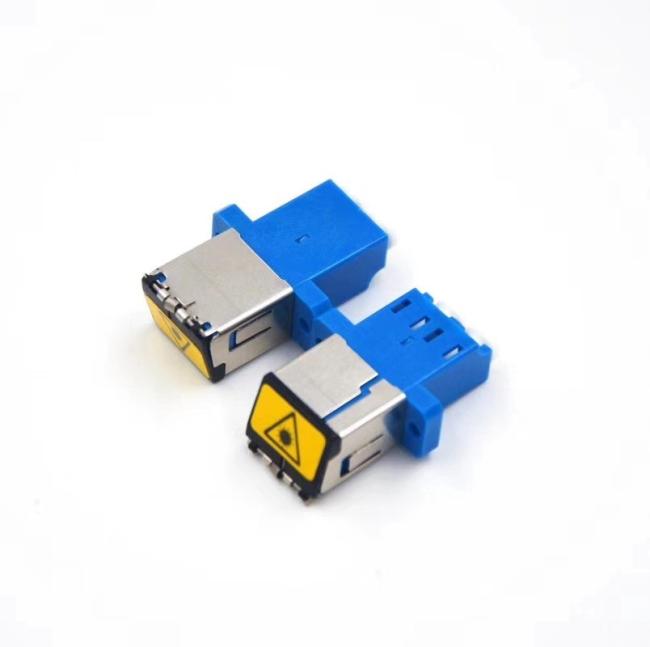

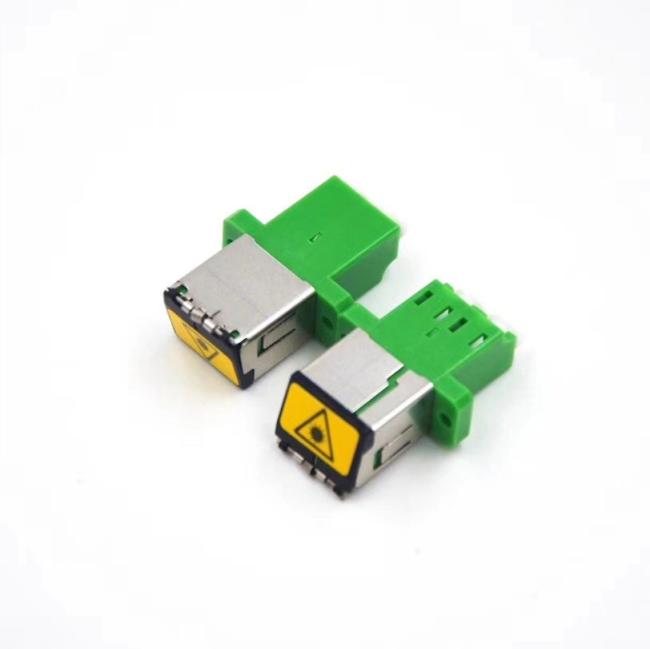

LC fiber optic adapter Fiber Optic Couplers SM/MM/OM3/OM4/OM5 With Metal Shutter,dust protectection and eye protection
LC fiber optic adapter Fiber Optic Couplers SM/MM/OM3/OM4/OM5 With Metal Shutter,dust protectection and eye protection
Low insertion loss & High return loss
High Reliability & Good interchangeability
Low environmental sensitivity
Telecom network
Ethernet network
Optical communication equipment
LC Quad Fiber optic Adapter with internal shutter-Full flange is a one-piece design adapter. The shutter is 100% automatic and requires no physical handling of the shutter door. You can actuate this integrated, retractable shutter inside the adapter body by inserting the LC connector into the adapter. The shutter automatically opens as you insert the LC connector, and closes as you extract it. Due to the special design of the shutter, it will not touch the ferrule end face when you insert a connector, thus preventing end face damage. The internal shutter prevents eye exposure to lasers and provides protection from dust and other contaminants.
Specifications
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM PC |
| Insertion Loss | ≤0.2dB(Standard Grade); ≤0.1dB(Premium Grade); | ||
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB |
| Durability (1000 Mating) | 0.1dB Max. | ||
| Withdrawal force(g/f) | 2.0N ~ 5.9N (200gf ~ 600gf) | ||
| Storage Temp(℃) | -40~+85 | ||
