LC Auto shutter adapter, 2/4 ports,singlemode UPC/APC,avoid dust contamination on ferrule of fiber connectors
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
3-5days
Brand:
UNIFIBER-OEM
Product Description

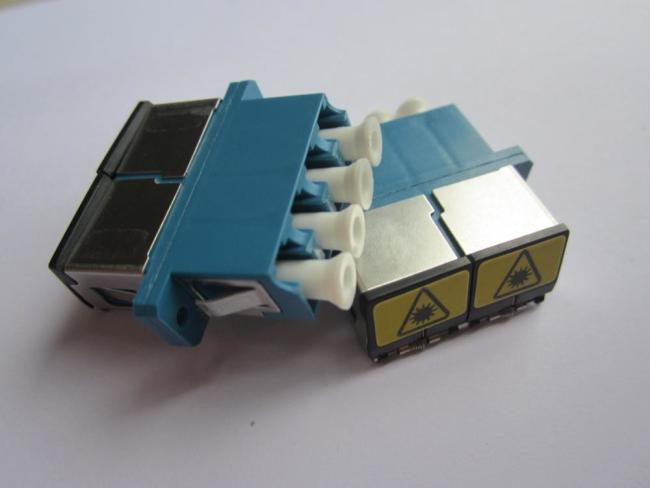

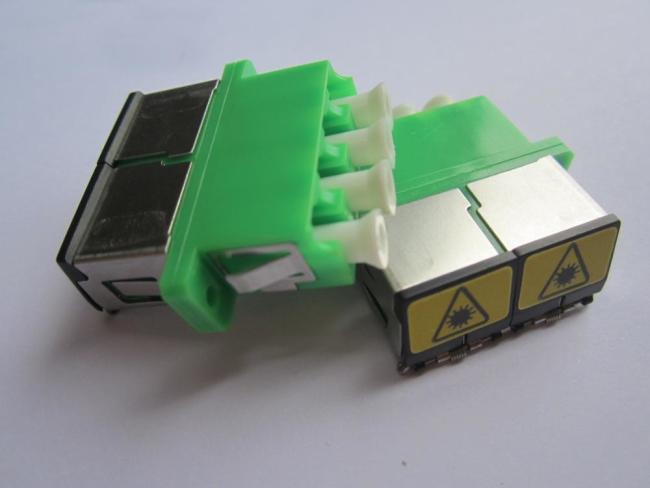

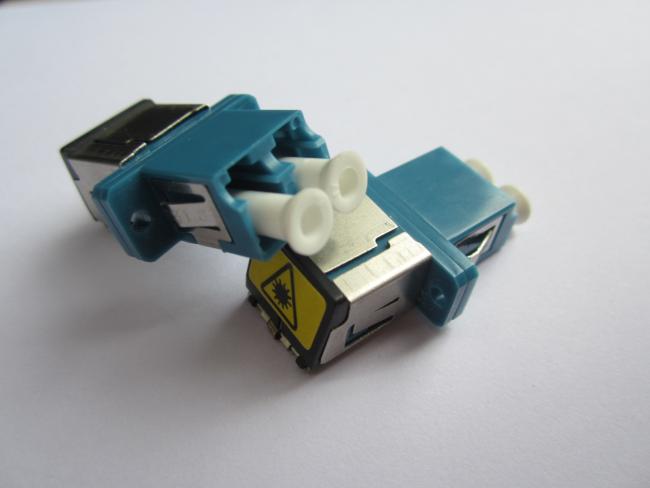

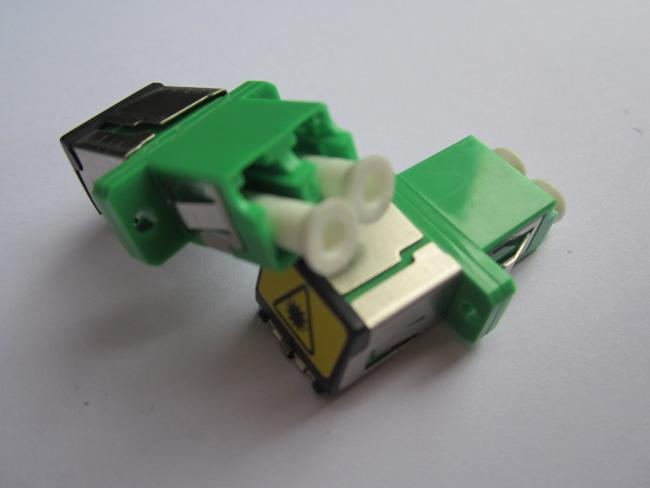

LC Auto shutter adapter, 2/4 ports,singlemode UPC/APC,avoid dust contamination on ferrule of fiber connectors
UNIFIBER offers several types of Auto Shutter Adaptor which could largely avoid dust contamination on ferrule of fiber connectors and shield the laser light to provide eye safety to end users. To suit for high density environment, compact solution in flangeless type is adopted. LC duplex auto shutter adaptors are also available.
Features
High Reliability & Good interchangeability
High Reliability & Good interchangeability
Low insertion loss & High return loss
Low environmental sensitivity
Low environmental sensitivity
Application
Telecom network
Ethernet network
Optical communication equipment
Specifications
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM PC |
| Insertion Loss | ≤0.2dB(Standard Grade); ≤0.1dB(Premium Grade); | ||
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB |
| Durability (1000 Mating) | 0.1dB Max. | ||
| Withdrawal force(g/f) | 2.0N ~ 5.9N (200gf ~ 600gf) | ||
| Storage Temp(℃) | -40~+85 | ||
