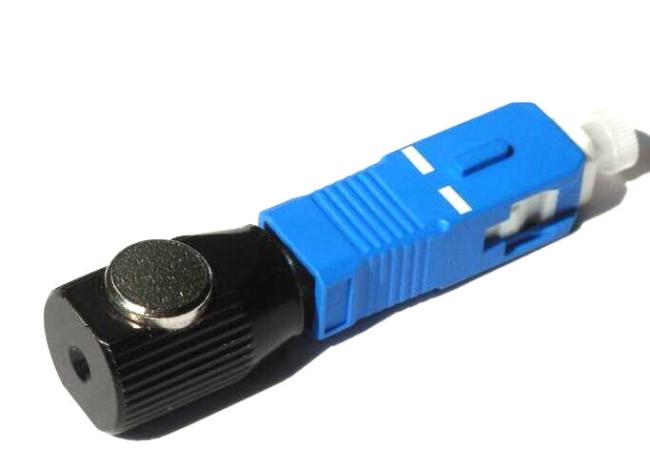

SC Square / Round Shape Bare Fiber Adapter,quick and easy temporary connections of single-mode and multimode fibers
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
3-5days
Brand:
UNIFIBER-OEM
Product Description
SC Square / Round Shape Bare Fiber Adapter,quick and easy temporary connections of single-mode and multimode fibers
Bare Fiber Adapters are used as a medium to connect bare fiber to your fiber optics equipment. for temporarily connecting bare fiber with all standard connectors. used for power meter hookups, temporary repairs, or quick fiber connections. These come with a low insertion loss and high quality polish.
Features
easy to install with push lever
Square shape SC Connector type
All metal construction
works with 250 or 900µm fiber (for 250µm use 900µm tubing)
Interchangeable for a wide range of products
Application
Power meter hookups
Temporary repairs
Temporary repairs
Quick fiber connections
Specifications
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM PC |
| Insertion Loss | ≤0.2dB(Standard Grade); ≤0.1dB(Premium Grade); | ||
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB |
| Durability (1000 Mating) | 0.1dB Max. | ||
| Withdrawal force(g/f) | 2.0N ~ 5.9N (200gf ~ 600gf) | ||
| Storage Temp(℃) | -40~+85 | ||
