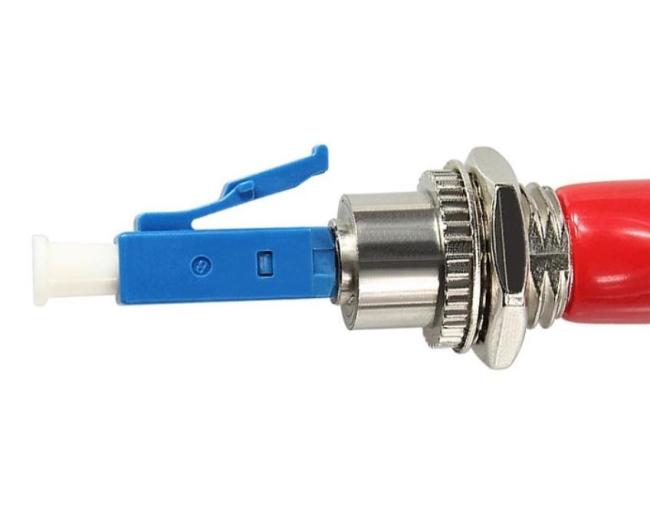

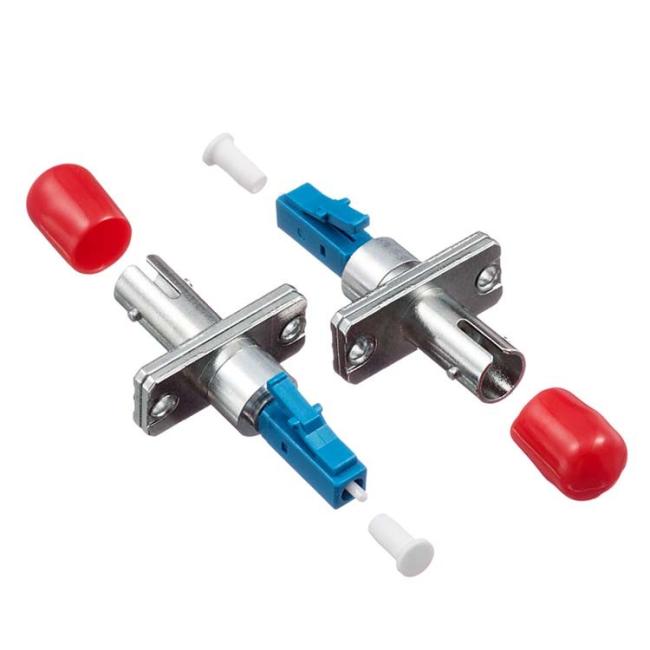

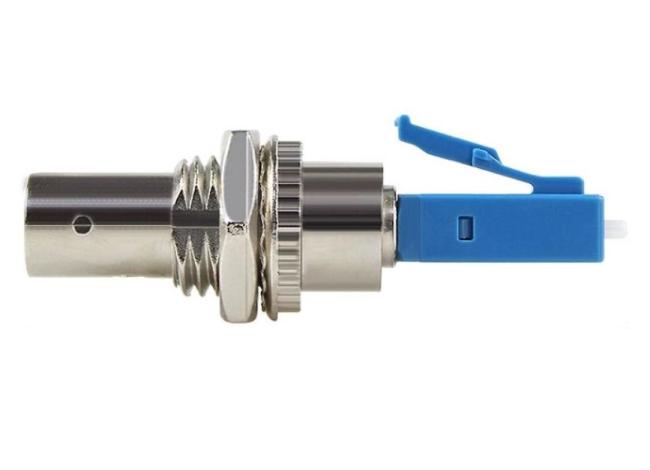

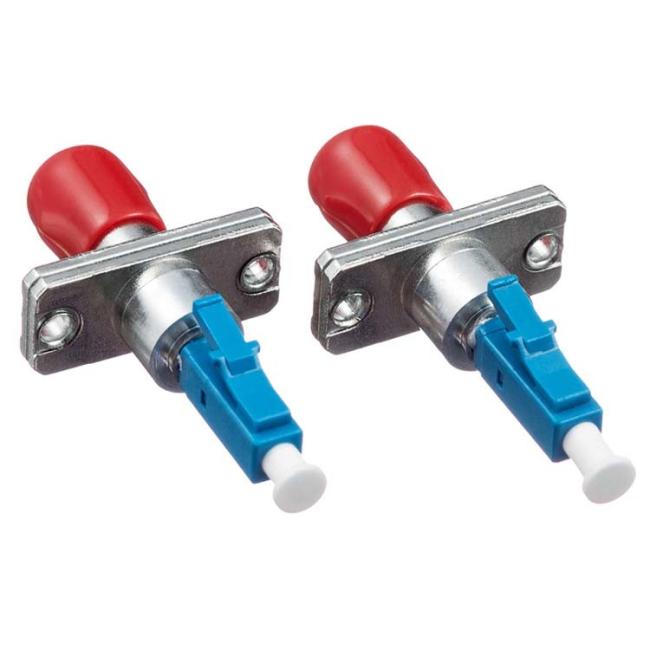

LC Male To ST/SC/FC Female Hybrid Fiber Optic Couplers Male To Female REACH SvHC Compliant
LC Male To ST/SC/FC Female Hybrid Fiber Optic Couplers Male To Female REACH SvHC Compliant
Optical Adaptor are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.
Telecommunications networks
Local area networks
Data processing networks
Cable television
Premises distribution
Test and laboratory equipment
Industrial and military application
High precision alignment sleeve
Low insertion loss and high reconnectability
REACH SvHC compliant
Materials compliant to RoHS2
Available in plastic or metal body
Complies with IEC, TIA/EIA, Telcordia standards
Specifications
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM PC |
| Insertion Loss | ≤0.2dB(Standard Grade); ≤0.1dB(Premium Grade); | ||
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB |
| Durability (1000 Mating) | 0.1dB Max. | ||
| Withdrawal force(g/f) | 2.0N ~ 5.9N (200gf ~ 600gf) | ||
| Storage Temp(℃) | -40~+85 | ||
