FC to LC male to female duplex/simplex hybrid fiber adapter, singlemode, plastic/metal housing, low insertion loss
Price:
Negotiable
MOQ:
50
Delivery Time:
3-5days
Brand:
UNIFIBER
Product Description

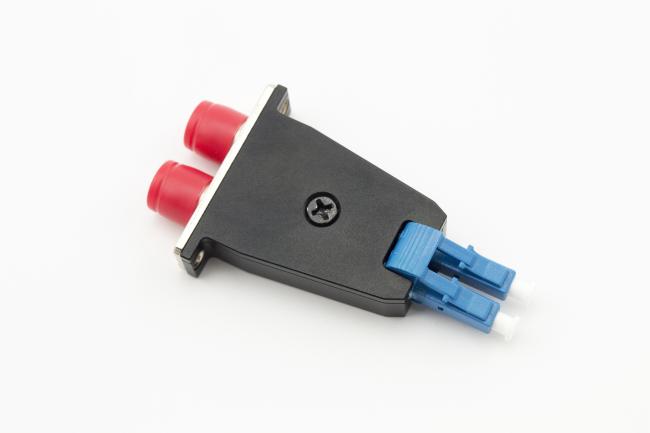

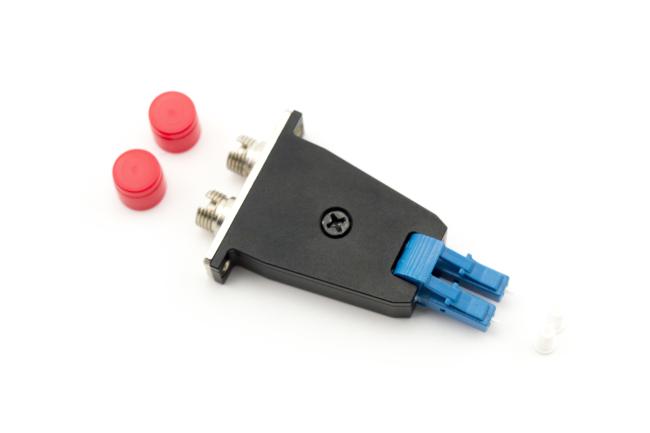

FC to LC male to female duplex/simplex hybrid fiber adapter, singlemode, plastic/metal housing, low insertion loss
Our hybrid adapters conform to international standards, are quality tested, and are available in single mode, multimode and many different connector-type configurations.Female to male hybrid adapter, using embedded fiber, ferrule and sleeve precision connection technology, Converts a type of connector to another type of connector,
Application
Cable television
Local area networks
Premises distribution
Local area networks
Premises distribution
Data processing networks
Telecommunications networks
Features
REACH SvHC compliant
Materials compliant to RoHS2
Complies with IEC, TIA/EIA, Telcordia standards
Low insertion loss and high reconnectability
Available in plastic or metal body
Materials compliant to RoHS2
Complies with IEC, TIA/EIA, Telcordia standards
High precision alignment sleeve
Specifications
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM PC |
| Insertion Loss | ≤0.2dB(Standard Grade); ≤0.1dB(Premium Grade); | ||
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB |
| Durability (1000 Mating) | 0.1dB Max. | ||
| Withdrawal force(g/f) | 2.0N ~ 5.9N (200gf ~ 600gf) | ||
| Storage Temp(℃) | -40~+85 | ||
