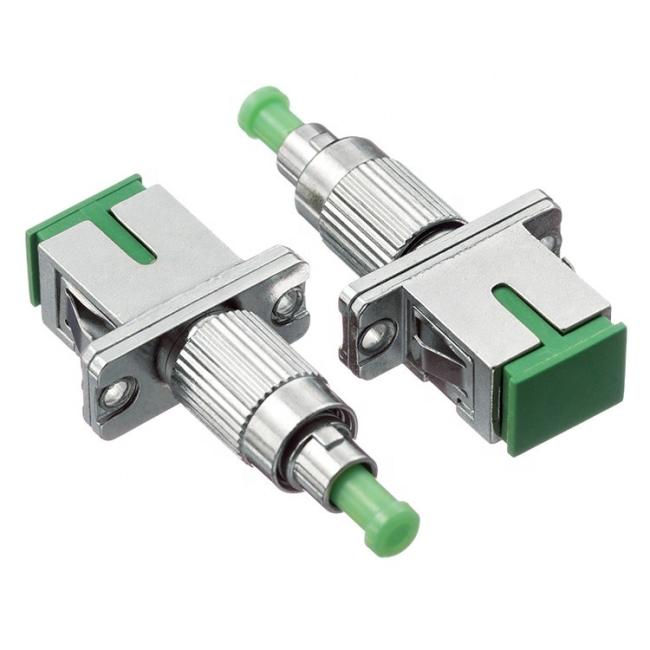

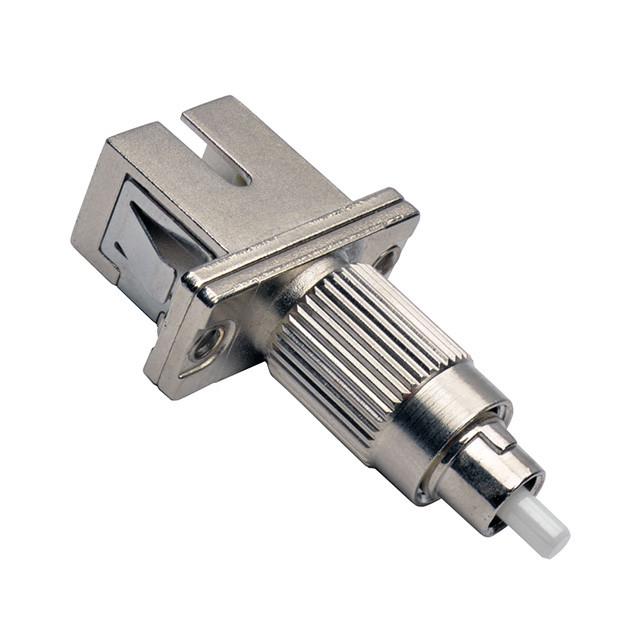

Fiber Optic Couplers SC Female To FC Male Hybrid sc fc adapter, Singlemode, PC/APC type, metal body
Fiber Optic Couplers SC Female To FC Male Hybrid sc fc adapter, Singlemode, PC/APC type, metal body
Optical hybrid Adaptor are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.
Characteristics:
High temperature stability
Low Insertion Loss and Back Reflect
Good durability and exchangeability
Various Connector Type Available
Application:
Optical Fiber Communications,Video,LAN, CATV Systems
Optical Network Equipments,optical Test Equipments
Module Pigtails,Multi media,Premise
Active device termination installations
Specifications
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM PC |
| Insertion Loss | ≤0.2dB(Standard Grade); ≤0.1dB(Premium Grade); | ||
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB |
| Durability (1000 Mating) | 0.1dB Max. | ||
| Withdrawal force(g/f) | 2.0N ~ 5.9N (200gf ~ 600gf) | ||
| Storage Temp(℃) | -40~+85 | ||
